Fit Vehicles /Application :XPENG- G3
AOZ NO:L-693
OE Numbers:DAC2F85F3595BA
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application :XPENG- G3
AOZ NO:L-693
OE Numbers:DAC2F85F3595BA
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
XPENG-DAC2F85F3595BA | |
Fit Vehicles | |
XPENG | |
G3 | 2018-2023 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

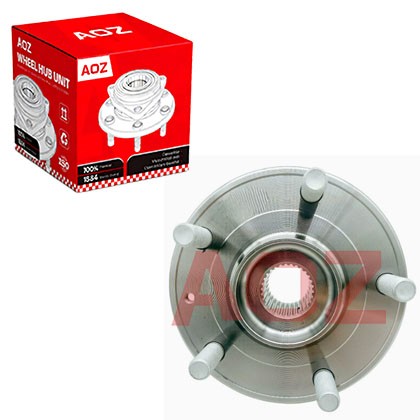

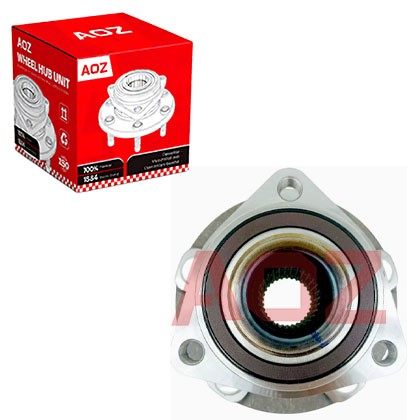

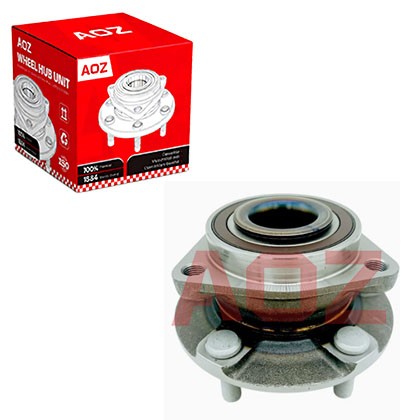

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |
FAQs
Q1: Why is it dangerous to store new hub assemblies near strong magnets or electric motors?
A: Hubs with integrated ABS sensors contain a delicate magnetic encoder ring. Storing them near strong magnetic fields can demagnetize or scramble the ring, rendering the ABS sensor useless before it's even installed.
Q2: Can a bad wheel bearing cause my car to fail a safety inspection?
A: Yes. Safety inspections check for excessive wheel play and functional ABS systems. A failing hub will result in an automatic failure.
Q3: Is it normal for the new hub to feel warm after a short test drive?
A: Yes. New hubs contain thick factory grease that creates initial friction. It is normal for the hub to feel warm, but it should not be scorching hot.
"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
