wheel-hub-bearing-unit-for-Chery-A11-3001017\A113001017

Fit Vehicles /Application :Chery

AOZ NO:LD628

OE Numbers:A11-3001017,A113001017

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :Chery

AOZ NO:LD628

OE Numbers:A11-3001017,A113001017

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
CHERY-A11-3001017
A113001017

Fit Vehicles
CHERY
Amulet A11	1999-2006

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang

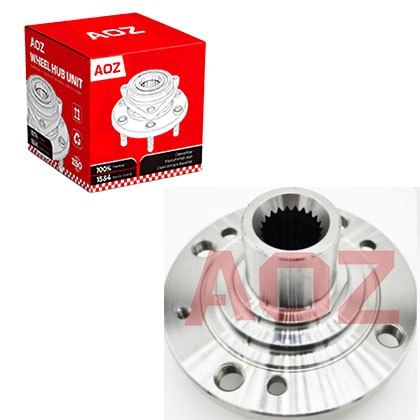

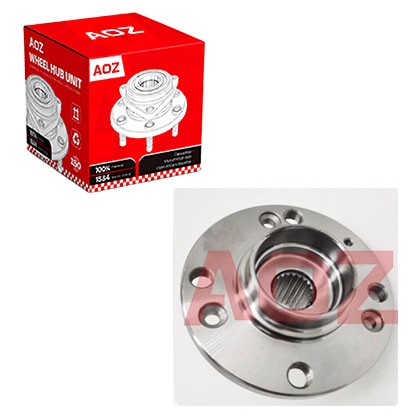

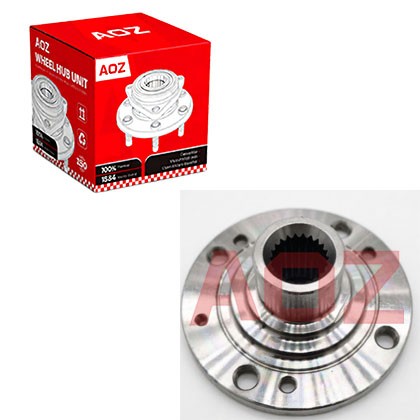

Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Can I just replace the bearing inside the hub assembly?

A: No. Modern hub units are factory-assembled as a single sealed unit. Attempting to disassemble them will destroy the precision clearances and seals.

Q2: Is it okay to use an impact wrench to tighten the axle nut?

A: Never. Impact wrenches can easily over-torque the nut and crush the bearing. Always use a calibrated torque wrench to apply the exact manufacturer-specified torque.

Q3: Do I need to replace the ABS sensor if I replace the hub?

A: Not necessarily. If the ABS sensor is functioning perfectly, you can reuse it. The new hub will simply provide a fresh magnetic encoder ring for it to read.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
