wheel hub bearing unit forBYD-3104110 /S6-3104110\M6-3104110\S6-3104100 / M6-3104100\BYD-S6-M6-REAR-ABS\DWH01408\BYD-S6-M6-3104100/3104110\DAC50900052ABS\W5090-ABS

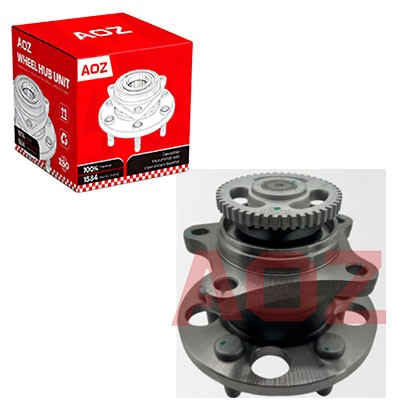

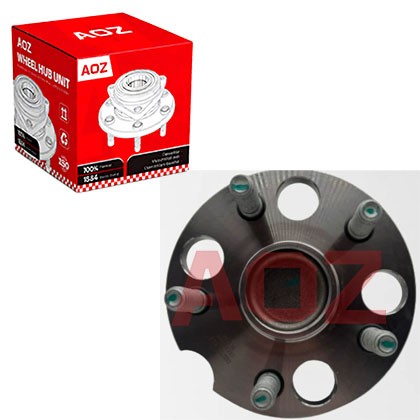

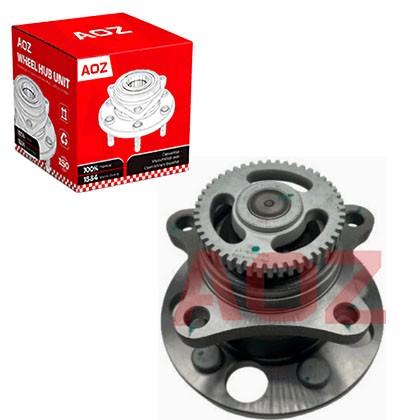

Fit Vehicles /Application :BYD S6, BYD M6 Rear Wheel Hub Bearing With ABS

AOZ NO:LD705

OE Numbers:3104110, M6-3104110, S6-3104110, S6-3104100

Cross Reference Numbers:VKBA7292, R17738, 9219288K, 713611561

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :BYD S6, BYD M6 Rear Wheel Hub Bearing With ABS

AOZ NO:LD705

OE Numbers:3104110, M6-3104110, S6-3104110, S6-3104100

Cross Reference Numbers:VKBA7292, R17738, 9219288K, 713611561

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
BYD---3104110 / S6-3104110	SKF:VKBA7292
M6-3104110	SNR:R17738
S6-3104100 / M6-3104100	GSP:9219288K
BYD-S6-M6-REAR-ABS	NTN:WBK17172
DWH01408	FAG:713611561
BYD-S6-M6-3104100/3104110	FEBI BILSTEIN:173063
DAC50900052ABS	MOOG:SA-WB-12368
W5090-ABS	OPTIMAL:964568

Fit Vehicles
BYD
S6 Rear Wheel With ABS	2011–2017
M6 Rear Wheel With ABS	2010–2017

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Will towing heavy loads affect the hub's lifespan?

A: Yes, towing significantly increases the radial load on the hub. We recommend checking the hubs more frequently if you tow regularly.

Q2: Are your hubs suitable for off-road driving?

A: Yes. Our multi-lip seal design is specifically engineered to keep out mud, sand, and water. However, a visual inspection is recommended after severe off-roading.

Q3: How do you prevent grease breakdown in desert heat?

A: We use premium synthetic grease with a high dropping point and excellent oxidation resistance, ensuring it remains stable even in extreme ambient temperatures.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
