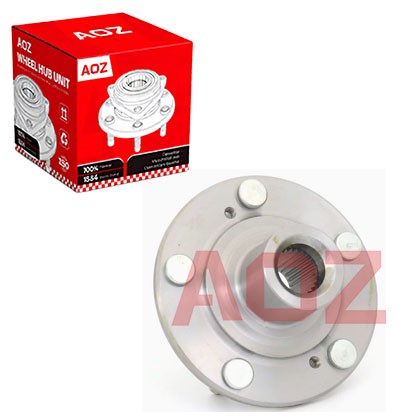

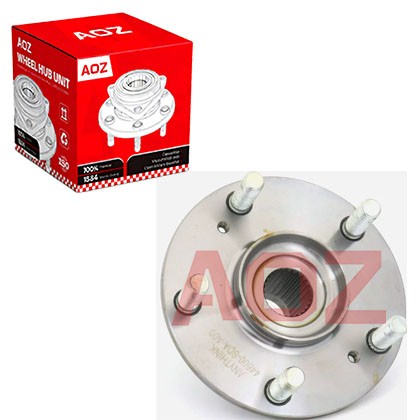

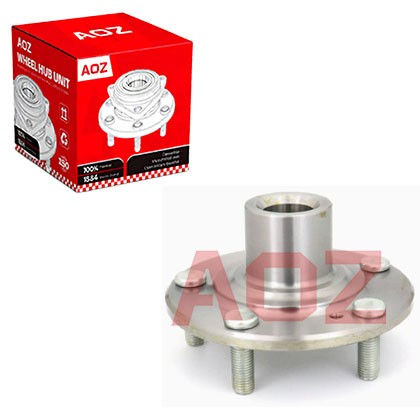

wheel hub bearing unit forBYD-44600-SDA-A00\DAC51960048ABS\SL931194\HONDA-ACCORD-F6-FRONT-ABS\DWH01456\OE-44600-SDA-A00\DAC51960048ABS\W5196-ABS

Fit Vehicles /Application : BYD HONDA ACCORD 2003-2007, BYD F6 Front Wheel Hub Bearing With ABS

AOZ NO:L-704

OE Numbers:44600-SDA-A00, DAC51960048ABS, SL931194

Cross Reference Numbers:VKBA7352, R17786, 9219336K, 713611609

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles /Application : BYD HONDA ACCORD 2003-2007, BYD F6 Front Wheel Hub Bearing With ABS

AOZ NO:L-704

OE Numbers:44600-SDA-A00, DAC51960048ABS, SL931194

Cross Reference Numbers:VKBA7352, R17786, 9219336K, 713611609

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers




OEM-NUMBER

Cross Reference code

BYD--44600-SDA-A00

SKF:VKBA7352

DAC51960048ABS

SNR:R17786

SL931194

GSP:9219336K

HONDA-ACCORD-F6-FRONT-ABS

NTN:WBK17208

DWH01456

FAG:713611609

OE-44600-SDA-A00

FEBI BILSTEIN:173111

DAC51960048ABS

MOOG:SA-WB-12416

W5196-ABS

OPTIMAL:964616





Fit Vehicles


HONDA


ACCORD (7th Gen) Front Wheel

2003–2007

BYD


F6 Front Wheel

2008–2013



GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes





ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers
















FAQs

Q1: What does uneven grease distribution inside a failed hub indicate?

A: Uneven grease often points to incorrect installation torque or a damaged seal that allowed contaminants to enter. It can also indicate the hub was subjected to excessive axial loads beyond its design limits.



Q2: How can you distinguish between hub failure and suspension wear?

A: Hub failure typically produces a constant humming or growling noise that changes with vehicle speed. Suspension wear usually causes clunking sounds that occur specifically when going over bumps, not continuously with wheel rotation.



Q3: What does spalling on the bearing raceway suggest?

A: Spalling (flaking of the metal surface) is a classic sign of fatigue failure. This usually indicates the hub has exceeded its expected service life, was subjected to shock loads from potholes, or was installed with incorrect preload.

"Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
