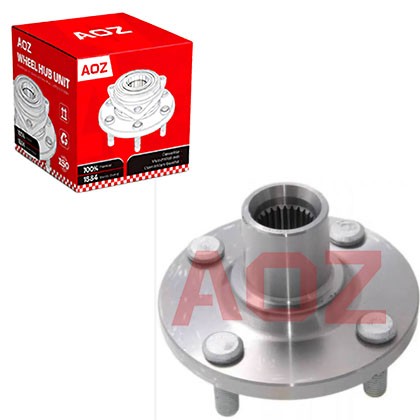

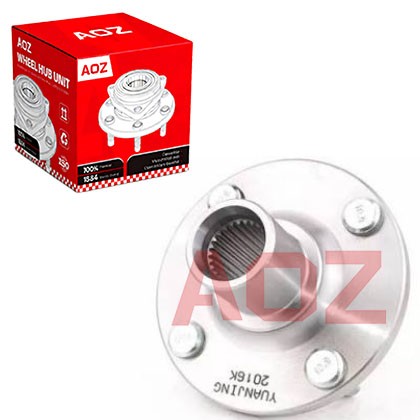

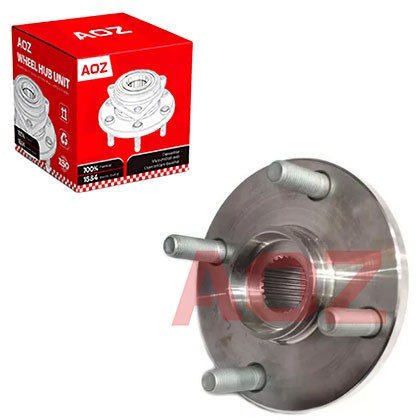

wheel hub bearing unit forBYD-10235593-00\1023559300\10214085-00\1021408500\SL931206\BYD-F3-F3R-OLD-FRONT-HUB-W/OABS\DWH01464\OE-10235593-00\HUB-F3-OLD-FRONT\W-HUB-F306

Fit Vehicles /Application : BYD F3, BYD F3R 2006-2010 Front Wheel Hub Assembly (W/O ABS)

AOZ NO:LD712

OE Numbers:10235593-00, 10214085-00, 1023559300, 1021408500, SL931206

Cross Reference Numbers:VKBA7362, R17794, 9219344K, 713611617

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles /Application : BYD F3, BYD F3R 2006-2010 Front Wheel Hub Assembly (W/O ABS)

AOZ NO:LD712

OE Numbers:10235593-00, 10214085-00, 1023559300, 1021408500, SL931206

Cross Reference Numbers:VKBA7362, R17794, 9219344K, 713611617

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers




OEM-NUMBER

Cross Reference code

BYD--10235593-00,1023559300

SKF:VKBA7362

10214085-00,1021408500

SNR:R17794

SL931206

GSP:9219344K

BYD-F3-F3R-OLD-FRONT-HUB-W/OABS

NTN:WBK17214

DWH01464

FAG:713611617

OE-10235593-00

FEBI BILSTEIN:173119

HUB-F3-OLD-FRONT

MOOG:SA-WB-12424

W-HUB-F306

OPTIMAL:964624





Fit Vehicles


BYD


F3 Front Wheel Hub(W/O ABS)

2006–2010

F3R Front Wheel Hub(W/O ABS)

2006–2010



GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes





ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers















FAQs

Q1: What causes a clicking sound when turning corners?

A: A clicking or popping noise during turns is often a sign of advanced bearing wear or a damaged CV joint. It indicates that the internal components have developed excessive clearance.



Q2: Can a bad hub cause the brake pedal to pulsate?

A: Yes. If a worn hub allows the wheel to wobble, it can cause the brake pads to wear unevenly or warp the brake rotor, leading to a pulsating feeling when you apply the brakes.



Q3: Why does the humming noise get louder at higher speeds?

A: The noise is generated by the rolling elements passing over damaged areas inside the bearing. As the wheel spins faster, the frequency of these impacts increases, amplifying the sound.
