Fit Vehicles /Application :BYD SONG PRO
AOZ NO:LD1488
OE Numbers:SA2H-3104100, SA2H3104100, DAC48880046ABS, SL931166
Cross Reference Numbers:DAC48880046ABS, SL931166, SA2HW-3104100, RM930220
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application :BYD SONG PRO
AOZ NO:LD1488
OE Numbers:SA2H-3104100, SA2H3104100, DAC48880046ABS, SL931166
Cross Reference Numbers:DAC48880046ABS, SL931166, SA2HW-3104100, RM930220
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
BYD---SA2H-3104100 | A.B.S.: 201655 |
SA2H3104100 | SKF: VKBA7482 |
DAC48880046ABS | GSP: 9219440K |
SL931166 | SNR: R17890 |
SA2HW-3104100 | FAG: 713611713 |
RM930220 | FEBI BILSTEIN: 173215 |
Fit Vehicles | |
SONG | |
PRO EV | 2019 - 2023 |
PRO DM-i | 2019 - 2023 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

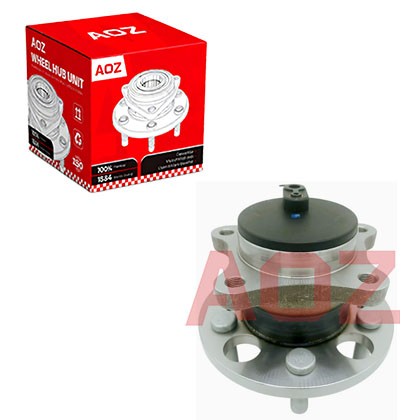

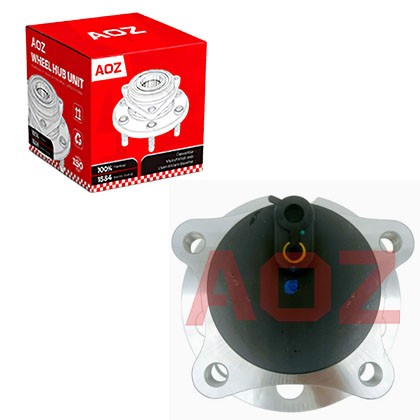

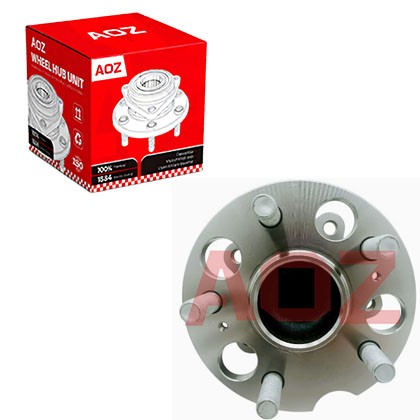

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |

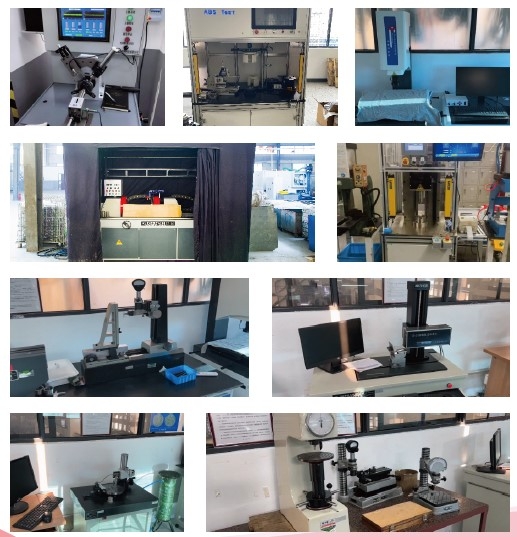

Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |
FAQs
Q1: Will this hub fit if the OE number is slightly different?
A: Not necessarily. Minor OE differences can mean changes in flange design or ABS sensors. Always verify via VIN or exact OE number.
Q2: Can I use a hub from a different model year?
A: Only if cross-compatibility is confirmed. Suspension and braking designs often change between model years.
Q3: Are left and right hub units interchangeable?
A: Generally, no. They often have different ABS sensor orientations or bolt patterns. Always install the correct side-specific unit.
