Fit Vehicles /Application :DFM-DFSK-GLORY 580
AOZ NO:LD722
OE Numbers:1712010-SA01, 1712010SA01, DAC48900046ABS, SL930162
Cross Reference Numbers:DAC48900046ABS, SL930162, GL-1712010-SA01, RM930316
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application :DFM-DFSK-GLORY 580
AOZ NO:LD722
OE Numbers:1712010-SA01, 1712010SA01, DAC48900046ABS, SL930162
Cross Reference Numbers:DAC48900046ABS, SL930162, GL-1712010-SA01, RM930316
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
DFM---1712010-SA01 | A.B.S.: 201757 |
1712010SA01 | SKF: VKBA7642 |
DAC48900046ABS | GSP: 9219568K |
SL930162 | SNR: R18018 |
GL-1712010-SA01 | FAG: 713611841 |
RM930316 | FEBI BILSTEIN: 173343 |
Fit Vehicles | |
GLORY | |
580 | 2016-2022 |
580 Pro | 2019-2022 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

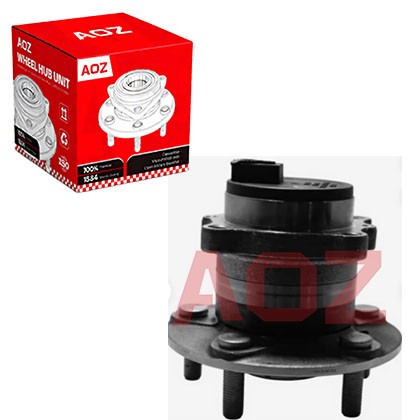

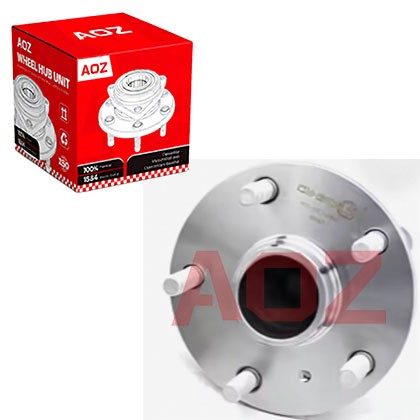

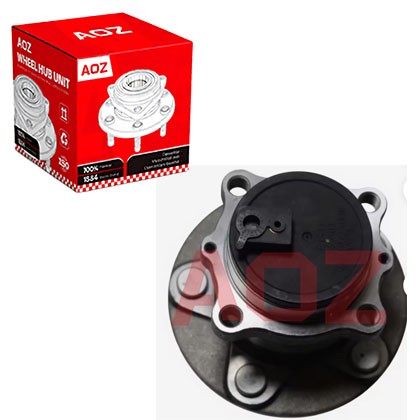

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |
FAQs
Q1: How do your hub units handle water and mud?
A: They feature multi-lip seals designed to block water, mud, and road debris, keeping the internal grease clean and preventing premature wear.
Q2: Are they resistant to road salt corrosion?
A: Yes. The flanges and housings are coated with anti-corrosion treatments to withstand harsh winter conditions and salty roads.
Q3: Can they operate in high-temperature braking zones?
A: Absolutely. We use high-temperature synthetic grease that maintains its viscosity even when brake discs generate extreme heat.
"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
