Fit Vehicles /Application :DFM-AEOLUS A60
AOZ NO:LD725
OE Numbers:E130310J-G0101, E130310JG0101, 4581081, DAC2F108103447
Cross Reference Numbers:DAC2F108103447, SL930285, AEW-E130310J-G0101, RM930334
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application :DFM-AEOLUS A60
AOZ NO:LD725
OE Numbers:E130310J-G0101, E130310JG0101, 4581081, DAC2F108103447
Cross Reference Numbers:DAC2F108103447, SL930285, AEW-E130310J-G0101, RM930334
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
DFM---E130310J-G0101 | A.B.S.: 201775 |
E130310JG0101 | SKF: VKBA7672 |
4581081 | GSP: 9219592K |
DAC2F108103447 | SNR: R18042 |
SL930285 | FAG: 713611865 |
AEW-E130310J-G0101 | FEBI BILSTEIN: 173367 |
Fit Vehicles | |
AEOLUS | |
A60 | 2012-2018 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

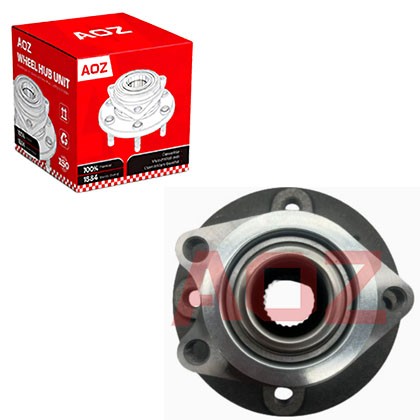

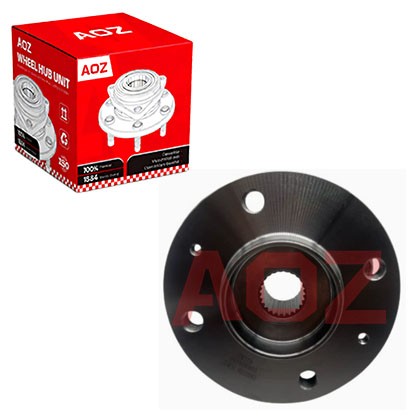

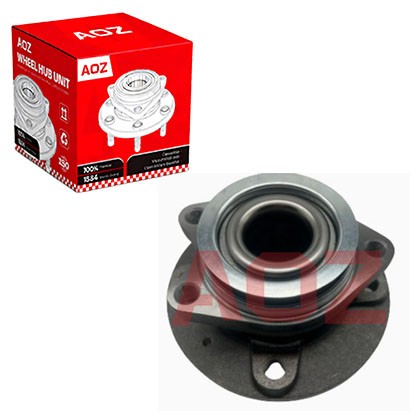

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |
FAQs
Q1: Can I hammer the new hub into place?
A: Never. Always use a hydraulic press to avoid internal damage.
Q2: Do I need to grease the new hub?
A: No. Modern hub units are pre-greased and sealed for life.
Q3: Should I reuse the old axle nut?
A: No. Always use a new axle nut to ensure correct torque.
