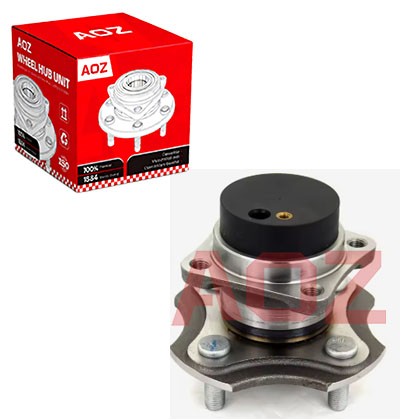

wheel hub bearing unit forDFM-B12-3104010\B123104010\DAC42770039\SL930018\JOY-B12-3104010\RM930292

Fit Vehicles /Application :DFM-DFLZ-JOYEAR B12

AOZ NO:LD660

OE Numbers:B12-3104010, B123104010, DAC42770039, SL930018

Cross Reference Numbers:DAC42770039, SL930018, JOY-B12-3104010, RM930292

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :DFM-DFLZ-JOYEAR B12

AOZ NO:LD660

OE Numbers:B12-3104010, B123104010, DAC42770039, SL930018

Cross Reference Numbers:DAC42770039, SL930018, JOY-B12-3104010, RM930292

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
DFM---B12-3104010	A.B.S.: 201733
B123104010	SKF: VKBA7602
DAC42770039	GSP: 9219536K
SL930018	SNR: R17986
JOY-B12-3104010	FAG: 713611809
RM930292	FEBI BILSTEIN: 173311

Fit Vehicles
JOYEAR
B12 1.5L	2010-2017

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: What are the pros and cons of larger wheels?

A: They improve handling and looks, but can cause a harsher ride, increase fuel consumption, and make tires more prone to pothole damage.

Q2: Which wheel parameters are critical for fitment?

A: You must match the Bolt Pattern (PCD), Offset (ET), Center Bore, and Width (J-value). Missing hub-centric rings for a larger center bore will cause severe high-speed vibration.

Q3: Do I need an alignment after changing wheels?

A: Not if the new wheels are the exact same size. However, if you change sizes or experience pulling/uneven tire wear, an alignment is necessary.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
