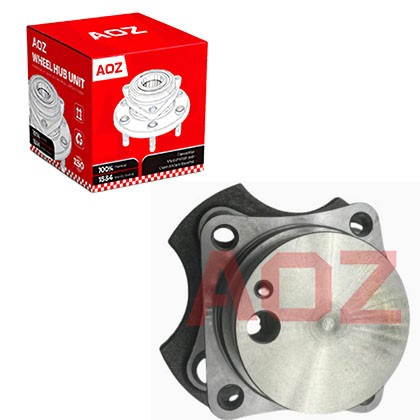

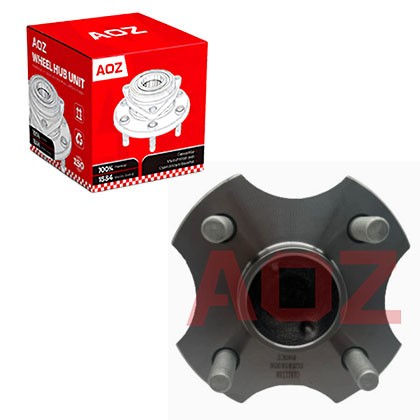

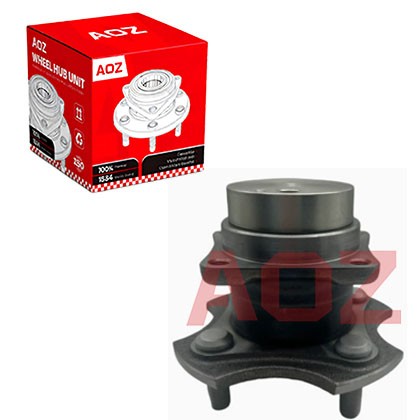

wheel hub bearing unit forGEELY-FC-1-3502110\DAC2F74R4404B-1\B12-3104020\SL930516\VISION-FC1-REAR-WOABS\GE-FC-1-3502110\DAC40740044\W4074-N

Fit Vehicles /Application :GEELY Vision FC-1 Rear Wheel, W/O ABS

AOZ NO：LD660

OE Numbers:FC-1-3502110, DAC2F74R4404B-1, B12-3104020, SL930516

Cross Reference Numbers:VKBA6886, R17404, 9216070K, 713611134

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :GEELY Vision FC-1 Rear Wheel, W/O ABS

AOZ NO：LD660

OE Numbers:FC-1-3502110, DAC2F74R4404B-1, B12-3104020, SL930516

Cross Reference Numbers:VKBA6886, R17404, 9216070K, 713611134

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
GEELY---FC-1-3502110	SKF:VKBA6886
DAC2F74R4404B-1	SNR:R17404
B12-3104020	GSP:9216070K
SL930516	NTN:WBK17026
VISION-FC1-REAR-WOABS	FAG:713611134
GE-FC-1-3502110	FEBI BILSTEIN:172278
DAC40740044	MOOG:SA-WB-11986
W4074-N	OPTIMAL:963992

Fit Vehicles
GEELY
Vision FC-1 Rear W/O ABS	2006–2014

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Why are maintenance-free hub units more cost-effective in the long run?

A: Although the initial purchase price might be slightly higher, they eliminate the recurring labor costs of cleaning, repacking, and adjusting bearings. They also significantly reduce vehicle downtime.

Q2: How does your hub unit improve fuel efficiency?

A: Our units are designed with optimized internal geometry and premium low-friction grease, which reduces the rotational friction torque and rolling resistance, directly saving fuel or extending EV range.

Q3: What happens if I try to disassemble a sealed hub unit?

A: Disassembling a sealed unit will destroy the factory-precision seals and internal clearances. This will immediately void the warranty and lead to rapid, premature failure.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
