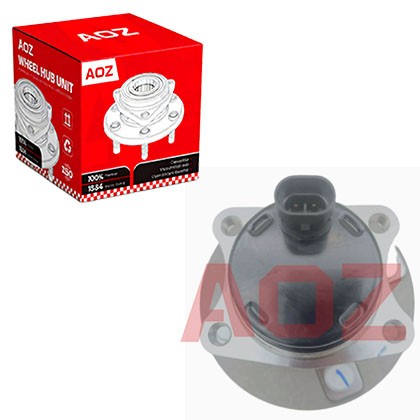

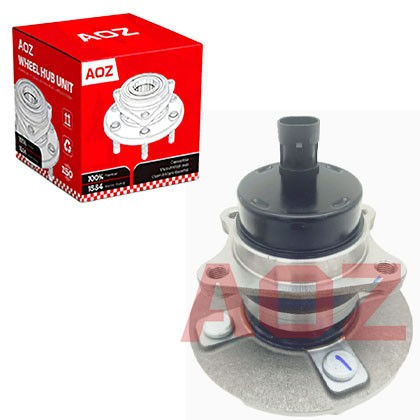

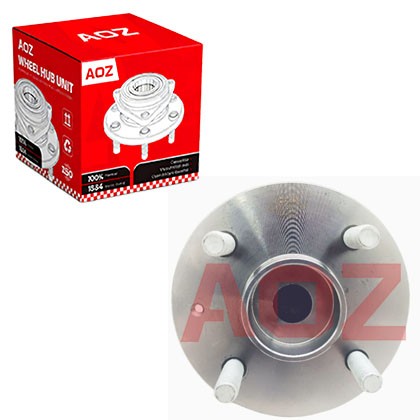

wheel hub bearing unit forGEELY-JL-113502110\JL113502110\LC-1-3502110\DAC38710039ABS\PANDA-GX2-REAR-ABS\SL930426\DAC38710039ABS\W3871

Fit Vehicles /Application :GEELY Panda / Gleagle GX2 Rear Wheel With ABS

AOZ NO：LD661

OE Numbers:JL-113502110, JL113502110, LC-1-3502110, DAC38710039ABS

Cross Reference Numbers:VKBA6856, R17374, 9216040K, 713611104

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :GEELY Panda / Gleagle GX2 Rear Wheel With ABS

AOZ NO：LD661

OE Numbers:JL-113502110, JL113502110, LC-1-3502110, DAC38710039ABS

Cross Reference Numbers:VKBA6856, R17374, 9216040K, 713611104

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
GEELY---JL-113502110	SKF:VKBA6856
JL113502110	SNR:R17374
LC-1-3502110	GSP:9216040K
DAC38710039ABS	NTN:WBK17023
PANDA-GX2-REAR-ABS	FAG:713611104
SL930426	FEBI BILSTEIN:172248
DAC38710039ABS	MOOG:SA-WB-11956
W3871	OPTIMAL:963964

Fit Vehicles
GEELY
Panda Rear ABS	2009–2016
Gleagle GX2 Rear ABS	2009–2016

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Can a bad wheel hub cause the ABS light to turn on?

A: Yes. Since modern hub units have the ABS magnetic encoder ring integrated into the seal, any physical damage to the seal or encoder will disrupt the speed signal and trigger the ABS warning light.

Q2: My steering wheel vibrates when braking. Is it the hub?

A: Not necessarily. This is usually caused by warped brake rotors or unevenly worn brake pads. However, excessive wheel play from a worn hub can also contribute to uneven brake wear.

Q3: How can I check if the hub is overheating during operation?

A: After a drive, use an infrared thermometer to check the hub temperature. If it is significantly hotter than the surrounding suspension components, it indicates excessive friction, lack of grease, or improper installation torque.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
