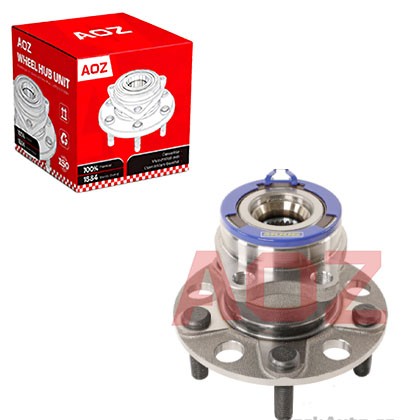

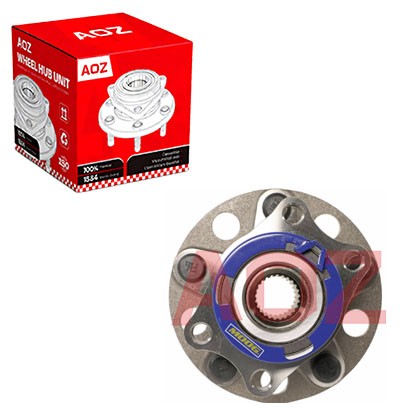

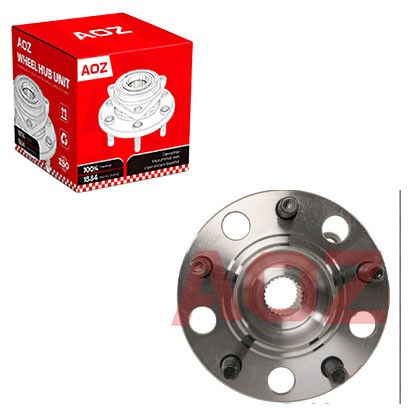

Wheel-hub-bearing-unit-for-Chrysler Dodge Plymouth-512333

Fit Vehicles /Application :Chrysler Dodge Plymouth-DODGE CALIBER,JEEP COMPASS,PATRIOT

AOZ NO:L-514

OE Numbers:512333

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles /Application :Chrysler Dodge Plymouth-DODGE CALIBERJEEP COMPASSPATRIOT

AOZ NO:L-514

OE Numbers:512333

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

Chrysler Dodge Plymouth-512333






Fit Vehicles


DODGE


CALIBER

2007-2008

JEEP


COMPASS

2007-2016

PATRIOT

2007-2017

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes





ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers















FAQs

Q1: Do I need to get a wheel alignment after replacing a hub assembly?

A: Yes, it is highly recommended. Removing and reinstalling the hub assembly requires disturbing the steering knuckle and suspension components, which can easily alter the vehicle's camber and toe angles. An alignment ensures your tires wear evenly and the steering wheel remains centered.



Q2: Can a bad wheel bearing cause my ABS to activate unexpectedly on dry pavement?

A: Yes. If the magnetic encoder ring inside the hub is damaged or has debris stuck to it, it may send a sudden drop in wheel speed signal to the ABS module. The computer will misinterpret this as a wheel locking up and trigger the ABS pump, even if you are braking normally on dry pavement.



Q3: Why does the humming noise get louder when I turn left, but quieter when I turn right?

A: This is a classic diagnostic trick. Turning left shifts the vehicle's weight onto the right side, increasing the load on the right wheel bearing. If the right bearing is damaged, the added weight makes the noise louder. Turning right unloads the right side, making the noise temporarily quieter.

"Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
