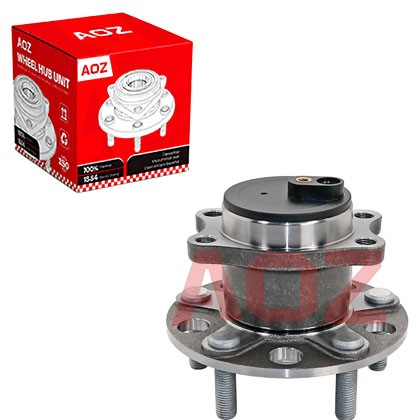

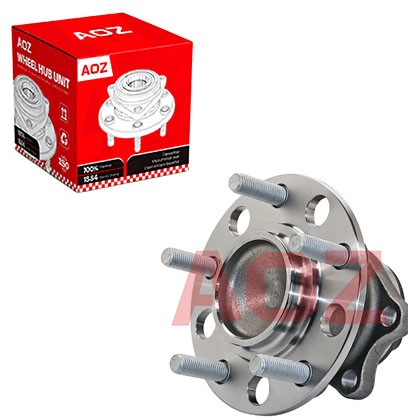

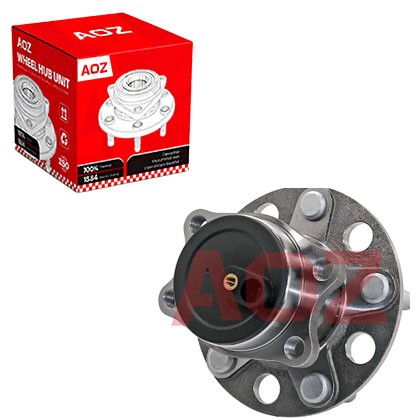

Wheel-hub-bearing-unit-for-Chrysler Dodge Plymouth-512332

Fit Vehicles /Application :Chrysler Dodge Plymouth-CHRYSLER 200,SEBRING,DODGE AVENGER,CALIBER, JEEP COMPASS ,PATRIOT

AOZ NO:LD039

OE Numbers:512332

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles /Application :Chrysler Dodge Plymouth-CHRYSLER 200,SEBRING,DODGE AVENGER,CALIBER, JEEP COMPASS ,PATRIOT

AOZ NO:LD039

OE Numbers:512332

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

Chrysler Dodge Plymouth-512332






Fit Vehicles


CHRYSLER


200

2011-2017

SEBRING

1995-2010

DODGE


AVENGER

2007-2010

CALIBER

2007-2012

JEEP


COMPASS

2007-Present

PATRIOT

2007-2017





GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes





ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers















FAQs

Q1: Can a failing hub cause my car to use more fuel?

A: Yes. A damaged bearing creates excessive internal friction and drag. The engine has to work harder to overcome this resistance, which can result in a slight decrease in fuel economy.



Q2: Is it normal for the hub to be hot to the touch after driving?

A: It is normal for the hub to be warm due to braking and road friction. However, if it is scorching hot or smoking, the bearing is likely over-torqued, lacking grease, or failing catastrophically.



Q3: Can I replace just the ABS sensor if the hub is still good?

A: If your vehicle uses a separate, external ABS sensor, yes. But if the sensor is integrated into the hub assembly, you must replace the entire hub unit.

"Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
