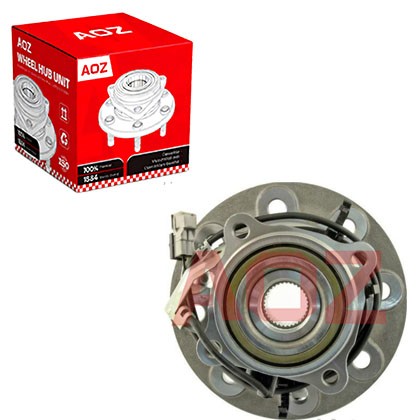

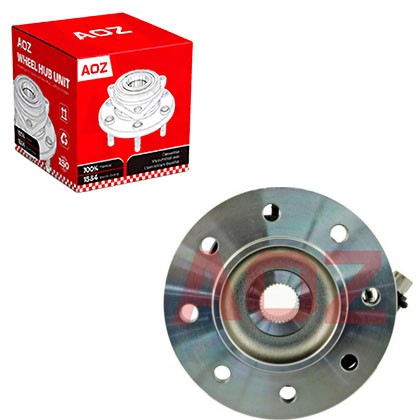

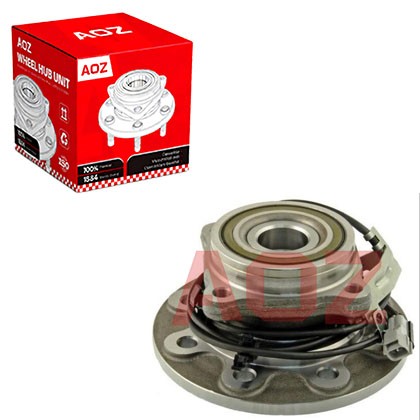

Wheel-hub-bearing-unit-for-Chrysler Dodge Plymouth-515034

Wheel-hub-bearing-unit-for-Chrysler Dodge Plymouth-515034

Fit Vehicles /Application :Chrysler Dodge Plymouth-DODGE RAM 2500 PICKUP

AOZ NO:LD008

OE Numbers:515034

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :Chrysler Dodge Plymouth-DODGE RAM 2500 PICKUP

AOZ NO:LD008

OE Numbers:515034

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
Chrysler Dodge Plymouth-515034

Fit Vehicles
Dodge
RAM 2500 PICKUP	1998-1999

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Will installing aftermarket oversized wheels or tires reduce my hub's lifespan?

A: Yes. Larger and heavier wheels increase the unsprung mass and place significantly more leverage and radial stress on the hub assembly, which can lead to premature wear and failure.

Q2: Can I use a dial indicator to check if my new hub is installed correctly?

A: Absolutely. After installation, use a dial indicator on the hub flange to check for lateral runout. Any wobble greater than the manufacturer's specification indicates debris on the knuckle surface or a defective hub.

Q3: Does extreme cold weather affect wheel bearings?

A: Yes. In freezing temperatures, the factory grease inside the bearing thickens, which can cause a temporary humming noise during the first few miles of driving. However, if the noise persists after the hub warms up, it indicates internal damage.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
