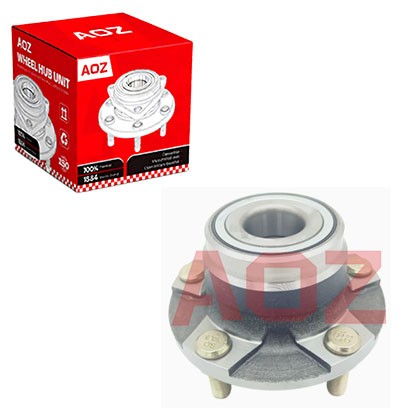

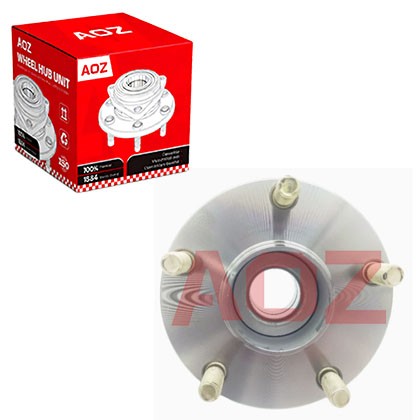

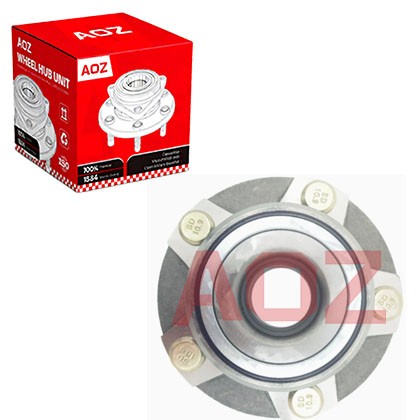

Wheel-hub-bearing-unit-for-FAW-3103020-7V5-C00\31030207V5C00

Fit Vehicles /Application :FAW- V80,T80 GF1500

AOZ NO:LD763

OE Numbers:3103020-7V5-C00,31030207V5C00

Cross Reference Numbers:DACF321344060

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :FAW- V80,T80 GF1500

AOZ NO:LD763

OE Numbers:3103020-7V5-C00,31030207V5C00

Cross Reference Numbers:DACF321344060

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
FAW-3103020-7V5-C00	DACF321344060
31030207V5C00

Fit Vehicles
FAW
V80	2013-2021
T80	2015-2018

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Can a bad wheel hub trigger the ABS and traction control lights?

A: Yes. Most modern hubs have a built-in magnetic encoder ring. If this ring gets damaged, dirty, or the hub is installed incorrectly, the ABS sensor won't receive a proper signal, triggering the warning lights.

Q2: Do I need to replace the brake rotor when I replace the hub?

A: Not necessarily. If the rotor is still within the minimum thickness specification and doesn't have deep grooves or heat spots, it can be reused. However, a failing hub can sometimes cause the rotor to warp, so always inspect it closely.

Q3: Can I use anti-seize on the wheel studs?

A: No. Wheel studs should always be installed dry. Applying anti-seize or grease changes the friction coefficient, which can lead to over-torquing and stretching the studs when you tighten the lug nuts.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
