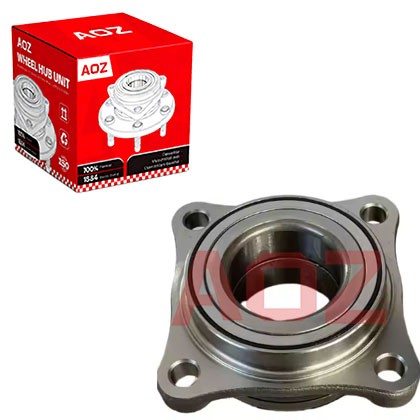

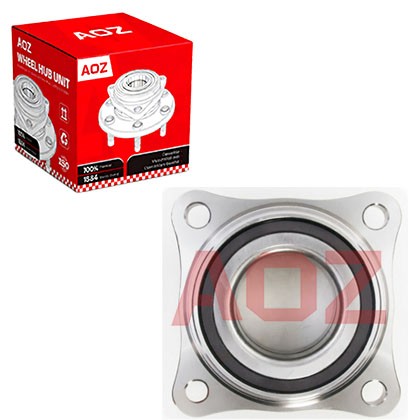

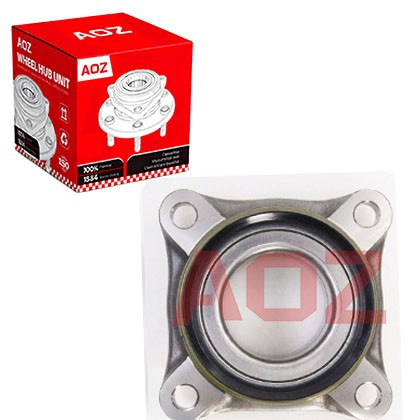

Wheel-hub-bearing-unit-for-FOTON-P1300180001A0

Wheel-hub-bearing-unit-for-FOTON-P1300180001A0

Fit Vehicles /Application :FOTON-Tunland

AOZ NO:L-316

OE Numbers:P1300180001A0

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :FOTON-Tunland

AOZ NO:L-316

OE Numbers:P1300180001A0

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
FOTON-P1300180001A0

Fit Vehicles
FOTON
Tunland	2012-2020

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Special rules for aluminum knuckles?

A: Yes. Aluminum is soft and damages easily. Always use a press tool, follow exact torque specs, and never reuse the original bolts.

Q2: Standard vs. ABS-integrated hubs?

A: Standard hubs only support the wheel. ABS-integrated hubs have a magnetic encoder ring. Using the wrong type will trigger an ABS warning light.

Q3: What are torque-to-yield bolts?

A: These bolts stretch during installation for maximum clamping force. They are single-use only and must be replaced with new ones.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
