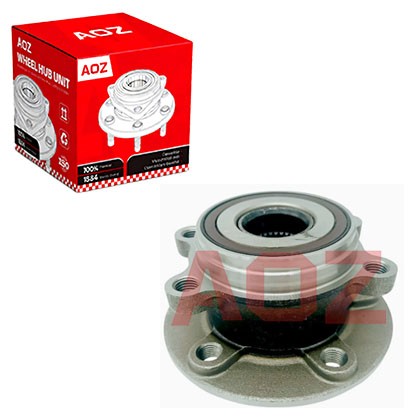

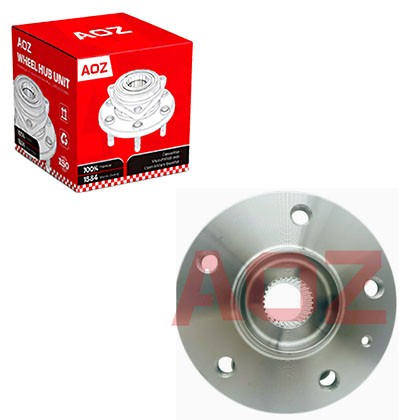

Wheel-hub-bearing-unit-for-GAC-Trumpchi-3510003AFC0000

Fit Vehicles /Application :GAC-Trumpchi-AION V

AOZ NO:L-670

OE Numbers:3510003AFC0000

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles /Application :GAC-Trumpchi-AION V

AOZ NO:L-670

OE Numbers:3510003AFC0000

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

GAC-Trumpchi-3510003AFC0000






Fit Vehicles


GAC-Trumpchi


AION V

2020-Present

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes





ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers














FAQs

Q1: Will a bad wheel bearing trigger the TPMS (Tire Pressure Monitoring System) light?

A: Generally, no. TPMS monitors tire pressure, not bearing health. However, severe bearing damage can affect the ABS wheel speed signal, which may indirectly trigger the ABS or ESP warning lights.



Q2: After replacing a hub, do I need a wheel balance or an alignment?

A: You must always perform a tire balance to prevent high-speed vibrations. An alignment is also highly recommended if the old bearing was severely worn, as the excessive play could have altered the suspension geometry.



Q3: Why did the traction control light turn on after a hub replacement?

A: This usually happens if the ABS magnetic encoder ring was damaged during installation, or if the sensor connector was left unplugged. Without a valid wheel speed signal, the vehicle disables its stability control systems for safety.

"Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
