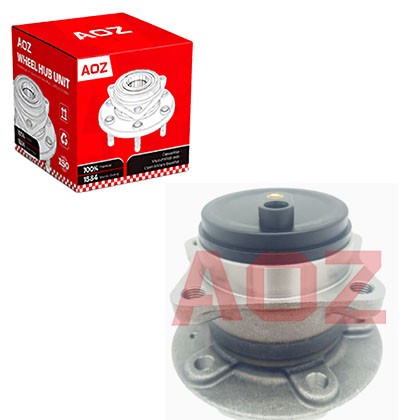

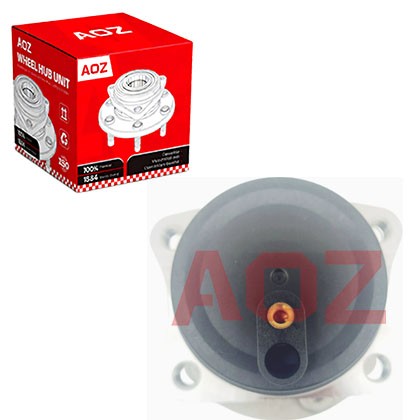

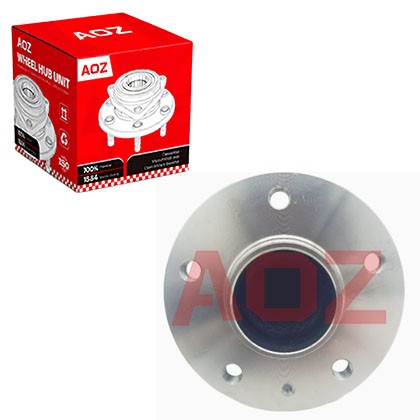

Wheel-hub-bearing-unit-for-GAC-Trumpchi-3520007ACN0000

Wheel-hub-bearing-unit-for-GAC-Trumpchi-3520007ACN0000

Fit Vehicles /Application :GAC-Trumpchi-AION S

AOZ NO:L-639

OE Numbers:3520007ACN0000

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :GAC-Trumpchi-AION S

AOZ NO:L-639

OE Numbers:3520007ACN0000

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
GAC-Trumpchi-3520007ACN0000

Fit Vehicles
GAC-Trumpchi
AION S	2019-Present

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Why is my steering wheel shaking after replacing the hub?

A: The hub likely isn't seated perfectly flat against the knuckle. Always clean the mounting surface to bare metal before installation to prevent runout and vibration.

Q2: Can a worn hub damage my CV axle?

A: Yes. Excessive lateral play causes the wheel to wobble, putting severe stress on the CV axle splines and joints, which can lead to premature axle failure.

Q3: Do I need to replace the brake rotor when replacing the hub?

A: Not necessarily. If the rotor is within thickness specifications and has no severe scoring, it can be reused. However, always inspect it closely for warping.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
