Fit Vehicles/Application:GM-USA-Chevrolet Colorado,GMC Canyon,Isuzu I-280, I-290, I-370
AOZ NO:LD083
OE Numbers:515105
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles/Application:GM-USA-Chevrolet Colorado,GMC Canyon,Isuzu I-280, I-290, I-370
AOZ NO:LD083
OE Numbers:515105
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
GM-USA-515105 | |
Fit Vehicles | |
Chevrolet | |
Colorado | 2004-Present |
GMC | |
Canyon | 2004-Present |
Isuzu | |
I-280 | 2006 |
I-290 | 2007-2008 |
I-370 | 2007-2008 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

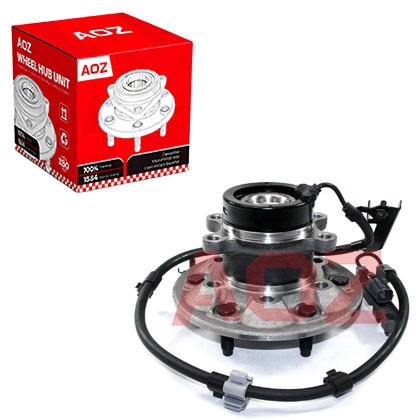

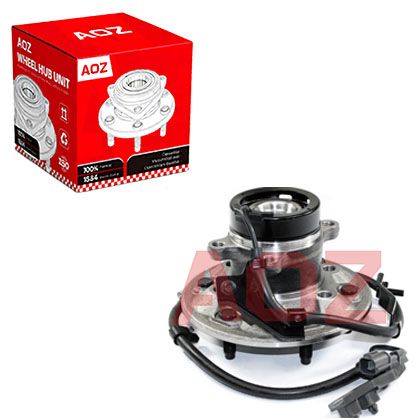

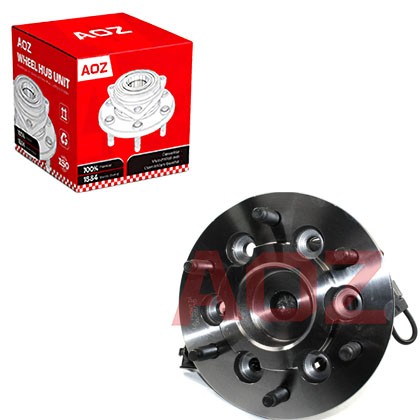

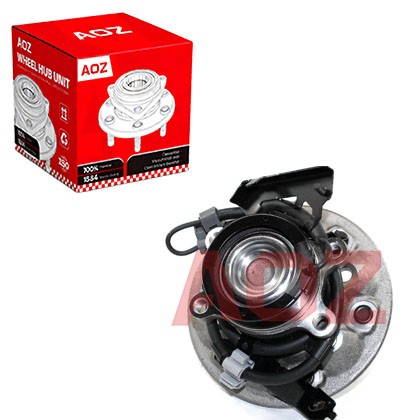

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |







FAQs
Q1: Can a bad hub bearing cause my vehicle to make a humming noise that gets louder at highway speeds?
A: Yes. A worn bearing creates increased friction and uneven contact between the rollers and raceway. This produces a humming or droning sound that typically becomes more noticeable above 40-50 mph and increases in pitch as speed rises.
Q2: Why does my new hub have a QR code or laser marking on the flange?
A: This marking contains batch and traceability information for quality control purposes. It helps the manufacturer track production dates, material lots, and testing records in case of a warranty claim or recall.
Q3: Can I reuse the old brake caliper bracket bolts when replacing a hub?
A: Only if they are not stretched or damaged. Many caliper bracket bolts are torque-to-yield and should be replaced. Always check your vehicle's service manual for the manufacturer's recommendation.
"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
