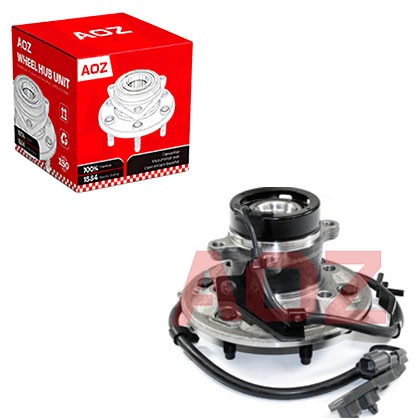

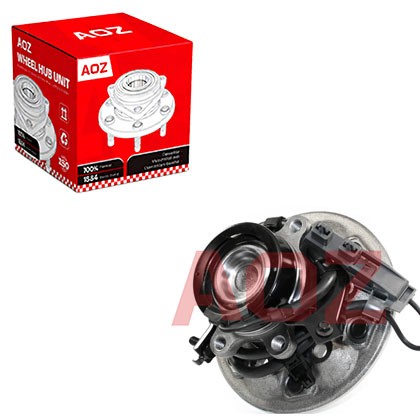

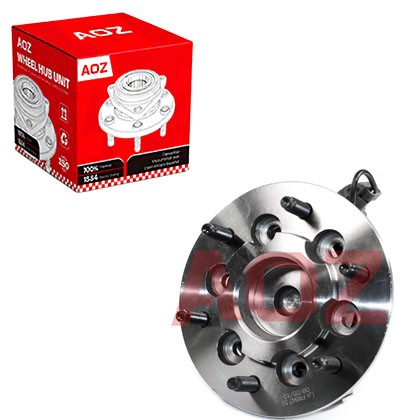

Wheel-hub-bearing-unit-for-GM-USA-515106

Fit Vehicles/Application:GM-USA-Chevrolet Colorado,GMC Canyon,Isuzu I-280, I-290, I-370

AOZ NO:LD084

OE Numbers:515106

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles/Application:GM-USA-Chevrolet Colorado,GMC Canyon,Isuzu I-280, I-290, I-370

AOZ NO:LD084

OE Numbers:515106

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

GM-USA-515106










Fit Vehicles


Chevrolet


Colorado

2004-Present

GMC


Canyon

2004-Present

Isuzu


I-280

2006

I-290

2007-2008

I-370

2007-2008











GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes



ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers
















FAQs

Q1: What causes a hub bearing to make a rhythmic clicking sound that matches wheel rotation?

A: This is typically caused by brinelling — small indentations in the bearing raceway from impact damage. As the rollers pass over each indentation during rotation, they produce a distinct clicking or tapping sound.


Q2: Can a hub bearing failure cause my vehicle's odometer to read incorrectly?

A: Yes. The odometer calculates distance based on wheel speed sensor data. If a damaged encoder ring sends erratic or inaccurate signals, the odometer may record incorrect mileage.


Q3: Why does my new hub assembly have a small sticker with a part number on it?

A: This sticker identifies the exact part number, application, and sometimes the manufacturing date. Keep it intact until after installation in case you need to verify the correct part was received or process a return.

"Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
