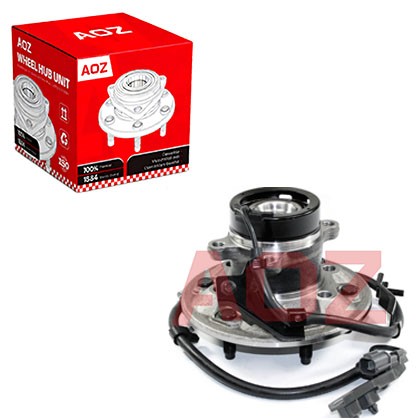

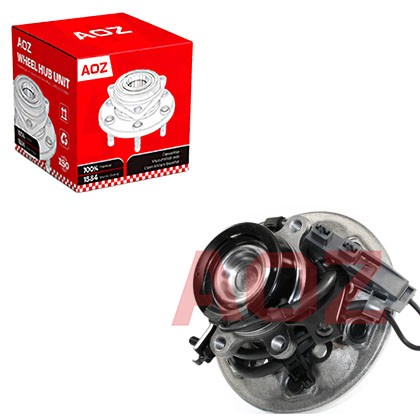

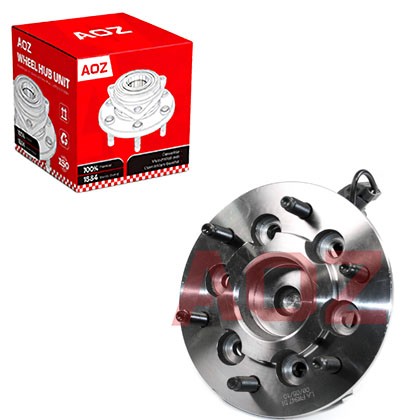

Wheel-hub-bearing-unit-for-GM-USA-515108

Fit Vehicles/Application:GM-USA-Chevrolet Colorado,GMC Canyon,Isuzu I-370

AOZ NO:LD086

OE Numbers:515108

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles/Application:GM-USA-Chevrolet Colorado,GMC Canyon,Isuzu I-370

AOZ NO:LD086

OE Numbers:515108

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

GM-USA-515108










Fit Vehicles


Chevrolet


Colorado

2004-Present

GMC


Canyon

2004-Present

Isuzu


I-370

2007-2008

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes



ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers


















FAQs

Q1: What causes a hub to make noise only when coasting but not when accelerating?

A: This can indicate damage to specific areas of the bearing raceway that are loaded differently during acceleration versus coasting. The load direction shifts between these driving conditions, exposing different damaged areas.


Q2: Can a hub bearing failure cause my vehicle to make a squealing noise when turning?

A: Yes. If the bearing is severely worn, the increased play can cause the hub to shift slightly during cornering, creating a squealing or rubbing sound as components make contact under lateral load.


Q3: Why does my new hub have a different finish than the old one?

A: Different manufacturers use different coatings — some use zinc plating, others use phosphate or painted finishes. As long as the part number matches your vehicle, the finish difference is cosmetic and does not affect performance.

"Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
