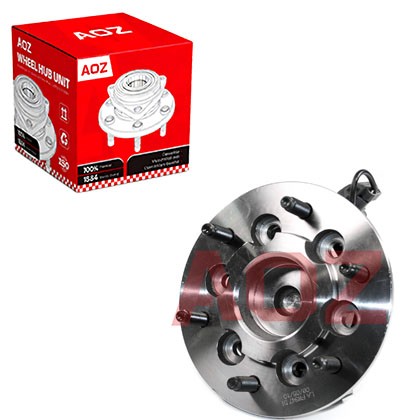

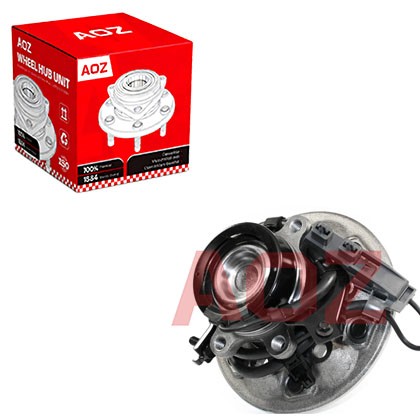

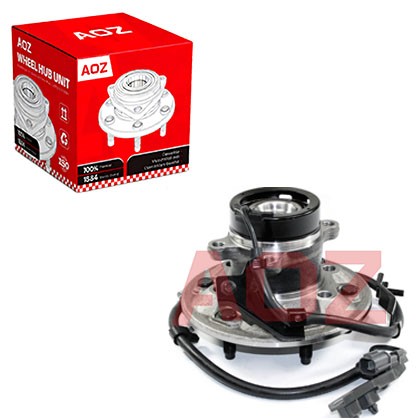

Wheel-hub-bearing-unit-for-GM-USA-515109

Wheel-hub-bearing-unit-for-GM-USA-515109

Fit Vehicles/Application:GM-USA-Chevrolet Colorado,GMC Canyon

AOZ NO:LD087

OE Numbers:515109

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles/Application:GM-USA-Chevrolet Colorado,GMC Canyon

AOZ NO:LD087

OE Numbers:515109

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
GM-USA-515109

Fit Vehicles
Chevrolet
Colorado	2004-Present
GMC
Canyon	2004-Present

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Can a bad hub bearing cause my vehicle to make a metallic scraping sound?

A: Yes. If the bearing seals are damaged, internal components can contact each other directly, creating a metallic scraping or grinding sound. This indicates severe wear and requires immediate replacement.

Q2: Why does my new hub have a small notch cut into the ABS wire?

A: This notch is a strain relief feature that prevents the wire from bending too sharply at the connector. It helps prevent wire fatigue and breakage from repeated suspension movement.

Q3: Can I install a hub assembly without removing the tire?

A: It is strongly recommended to remove the tire for proper access and safety. Working around a mounted tire increases the risk of injury and makes it difficult to properly torque fasteners and inspect components.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
