Fit Vehicles/Application:GM-USA-Chevrolet Colorado,GMC Canyon,Isuzu I-350, I-370
AOZ NO:LD088
OE Numbers:515110
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles/Application:GM-USA-Chevrolet Colorado,GMC Canyon,Isuzu I-350, I-370
AOZ NO:LD088
OE Numbers:515110
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
GM-USA-515110 | |
Fit Vehicles | |
Chevrolet | |
Colorado | 2004-Present |
GMC | |
Canyon | 2004-Present |
Isuzu | |
I-370 | 2007-2008 |
l-350 | 2006 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

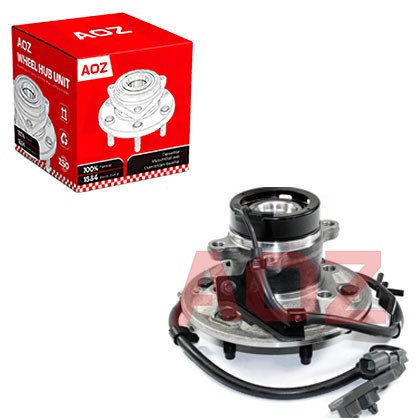

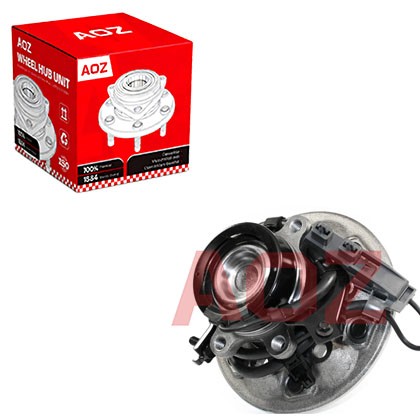

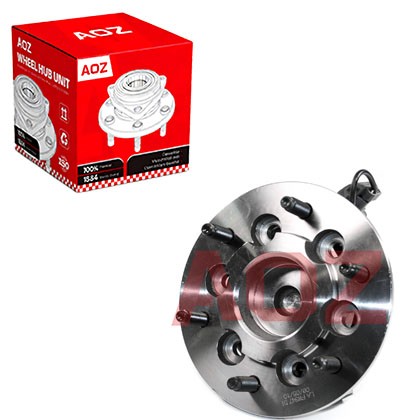

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |







FAQs
Q1: What causes a hub bearing to make a popping sound when turning at low speed?
A: Excessive play in a worn bearing allows the hub to shift under the lateral forces of turning. This movement can create a popping or snapping sound as components settle into different positions.
Q2: Can a hub bearing failure cause my vehicle to make a buzzing noise through the floorboard?
A: Yes. Rear hub bearing noise is often transmitted through the suspension and chassis into the cabin floor. A buzzing or vibrating sensation in the floorboard can indicate a failing rear bearing.
Q3: Why does my new hub have a small arrow or direction marking on it?
A: Some hubs are directional and must be installed in a specific orientation relative to the ABS sensor or knuckle. The arrow indicates the correct installation direction — always follow the manufacturer's instructions.
