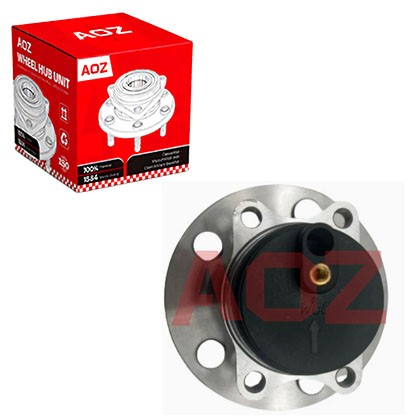

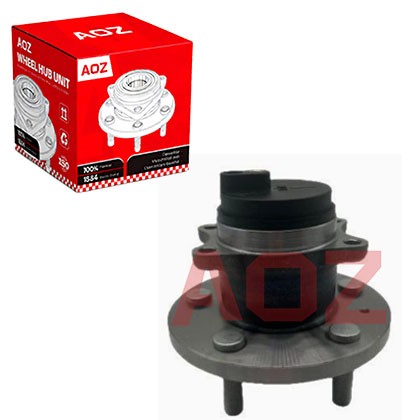

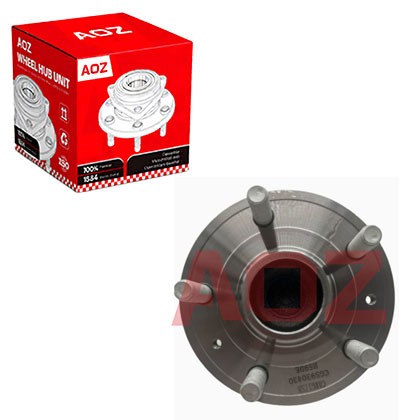

Wheel-hub-bearing-unit-for-JAC-3104100U2210

Wheel-hub-bearing-unit-for-JAC-3104100U2210

Fit Vehicles /Application :JAC-S2/S3

AOZ NO:LD750

OE Numbers:3104100U2210

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :JAC-S2/S3

AOZ NO:LD750

OE Numbers:3104100U2210

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
JAC-3104100U2210

Fit Vehicles
JAC
S2	2015-Present
S3	2013-Present

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Can I use a standard grease gun to lubricate a sealed hub assembly?

A: No. Sealed hub units are pre-greased at the factory for their entire lifespan. Attempting to inject grease will blow out the internal seals and contaminate the bearing.

Q2: What happens if I install the hub backwards?

A: For hubs with integrated ABS, installing it backwards will prevent the sensor from reading the magnetic encoder ring, causing the ABS and traction control lights to illuminate immediately.

Q3: Can I use anti-seize on the axle nut threads?

A: No. Axle nuts should be installed dry unless the manufacturer explicitly states otherwise. Lubricants change the friction coefficient, which can lead to over-torquing and crushing the bearing.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
