Fit Vehicles /Application :SorthEast-DX7/DX3
AOZ NO:LD757
OE Numbers:23B02A002
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application :SorthEast-DX7/DX3
AOZ NO:LD757
OE Numbers:23B02A002
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
SorthEast-23B02A002 | |
Fit Vehicles | |
SorthEast | |
DX7 | 2012-2015 |
DX3 | 2013-2015 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

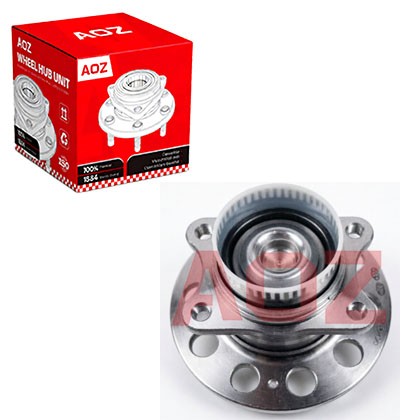

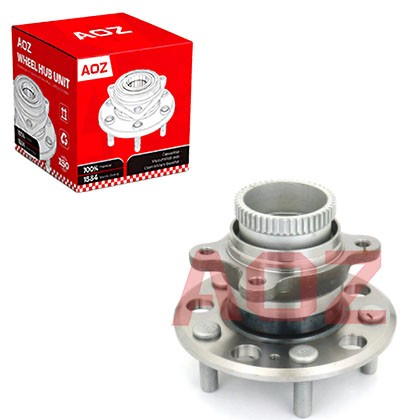

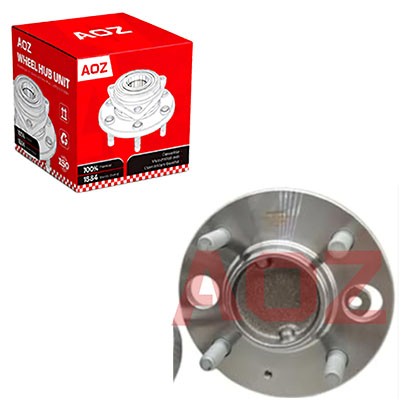

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |
FAQs
Q1: Can I pack the hub cavity full of grease during installation?
A: No. Modern sealed hub assemblies are pre-lubricated for life. Adding extra grease can cause overheating due to churning and may even leak onto the brake rotors, causing brake failure.
Q2: Why does my ABS light come on after a new hub installation?
A: This is usually caused by installing the hub backwards. The magnetic encoder ring must face inward toward the ABS sensor. If installed backwards, the sensor cannot read the wheel speed.
Q3: Do I need to perform a wheel alignment after replacing a hub?
A: It is highly recommended. While replacing a hub doesn't directly change suspension geometry, the removal and reinstallation process can shift settings. An alignment ensures even tire wear and proper handling.
