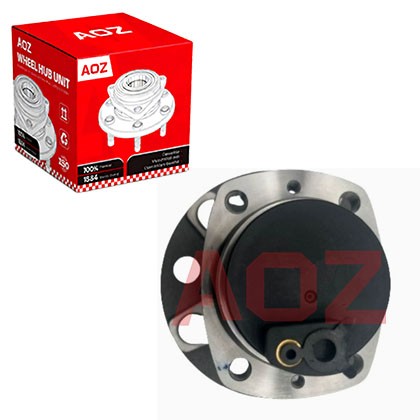

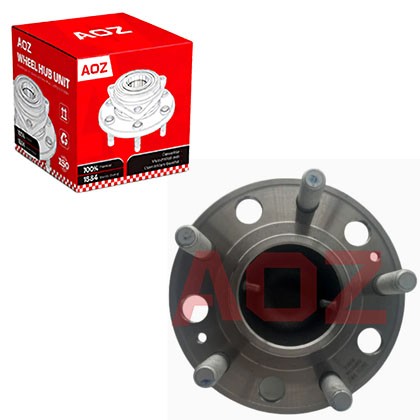

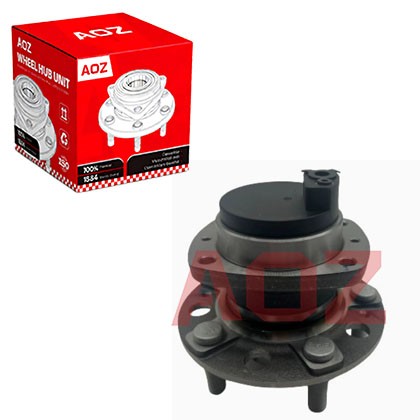

wheel hub bearing unit forCHANGAN-3502120-BE01\3502120BE01\B311056-0100\54BWKH31\NEW-CS15-REAR-ABS\SL930862\DAC54310038ABS\W5431

Fit Vehicles /Application :CHANGAN NEW CS15 Rear Wheel With ABS

AOZ NO：LD1525

OE Numbers:3502120-BE01, 3502120BE01, B311056-0100, 54BWKH31

Cross Reference Numbers:VKBA7070, R17580, 9220070K, 713611410

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :CHANGAN NEW CS15 Rear Wheel With ABS

AOZ NO：LD1525

OE Numbers:3502120-BE01, 3502120BE01, B311056-0100, 54BWKH31

Cross Reference Numbers:VKBA7070, R17580, 9220070K, 713611410

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
CHANGAN---3502120-BE01	SKF:VKBA7070
3502120BE01	SNR:R17580
B311056-0100	GSP:9220070K
54BWKH31	NTN:WBK17055
NEW-CS15-REAR-ABS	FAG:713611410
SL930862	FEBI BILSTEIN:173155
DAC54310038ABS	MOOG:SA-WB-12200
W5431	OPTIMAL:964580

Fit Vehicles
CHANGAN
NEW CS15 Rear With ABS	2018–Present

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: What should I check on the vehicle before installing a new hub?

A: Always inspect the steering knuckle, spindle, and mating surfaces for wear, corrosion, or scoring. Even minor damage to the mounting surface can cause misalignment and lead to premature bearing failure.

Q2: How do I verify the ABS encoder is intact before installation?

A: Simply hold a small metal object (like a paperclip) near the seal edge. It should be attracted to the magnetic encoder ring. If there is no magnetic pull, the encoder may be damaged or missing.

Q3: Is it necessary to clean the hub mounting area?

A: Absolutely. Any rust, dirt, or old gasket material left on the knuckle will cause the new hub to sit unevenly, leading to severe wheel wobble and runout issues.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
