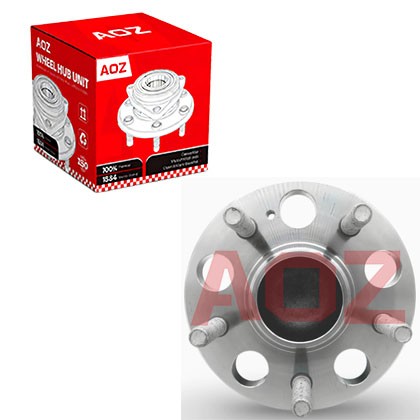

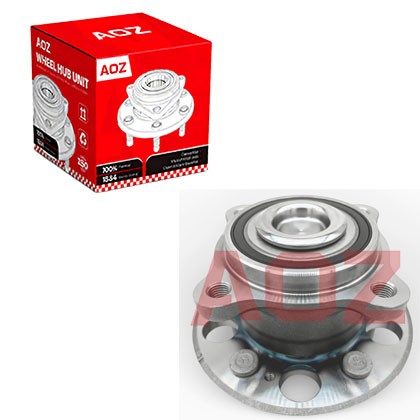

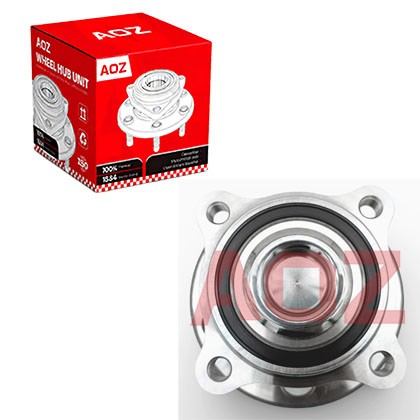

wheel hub bearing unit forCHANGAN-CD569F2603031002\68BWKH40\S301125-1100\UNIK-2WD-R-ABS\SL930912 CH\CD569F2603031002\DAC68400048ABS\W6840

Fit Vehicles /Application :CHANGAN UNI-K 2WD Rear Wheel With ABS

AOZ NO：LD1522

OE Numbers:CD569F2603031002, 68BWKH40, S301125-1100

Cross Reference Numbers:VKBA7110, R17620, 9220112K, 713611445

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :CHANGAN UNI-K 2WD Rear Wheel With ABS

AOZ NO：LD1522

OE Numbers:CD569F2603031002, 68BWKH40, S301125-1100

Cross Reference Numbers:VKBA7110, R17620, 9220112K, 713611445

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
CHANGAN---CD569F2603031002	SKF:VKBA7110
68BWKH40	SNR:R17620
S301125-1100	GSP:9220112K
UNIK-2WD-R-ABS	NTN:WBK17060
SL930912	FAG:713611445
CH-CD569F2603031002	FEBI BILSTEIN:173185
DAC68400048ABS	MOOG:SA-WB-12240
W6840	OPTIMAL:964610

Fit Vehicles
CHANGAN
UNI-K 2WD Rear ABS	2020–Present

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: How do I verify ABS sensor functionality post-install?

A: Use an OBDII scanner to check for fault codes after installation. A low-speed test drive should also clear any initial system warnings if the sensor and encoder are properly aligned.

Q2: Can the integrated encoder be damaged during install?

A: Yes. The magnetic encoder ring is sensitive to impact and strong magnetic fields. Avoid striking the hub face and keep it away from power tools or magnets during handling to prevent signal loss.

Q3: What causes intermittent ABS warnings with new hubs?

A: This is often due to a damaged encoder ring, improper sensor gap, or magnetic interference. Verify the encoder is intact, the sensor is fully seated, and no debris is obstructing the signal path.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
