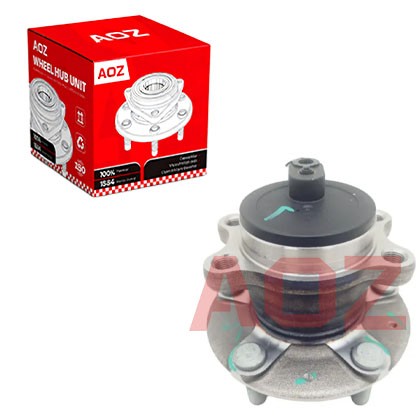

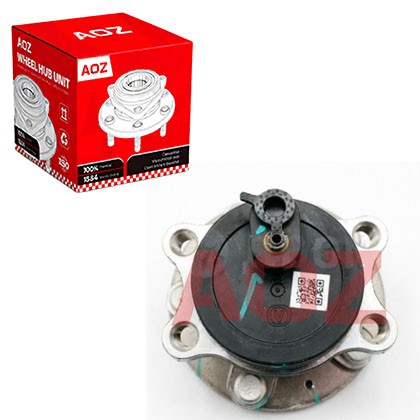

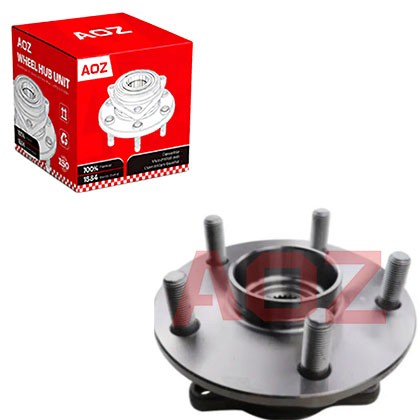

wheel hub bearing unit forCHANGAN-S202F2603030501\65BWKH39\S301118-0800\UNIT-2WD-R-ABS\SL930905\CH-S202F2603030501\DAC65390047ABS\W6539

Fit Vehicles /Application :CHANGAN UNI-T 2WD Rear Wheel With ABS

AOZ NO：LD1524

OE Numbers:S202F2603030501, 65BWKH39, S301118-0800

Cross Reference Numbers:VKBA7102, R17612, 9220104K, 713611437

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :CHANGAN UNI-T 2WD Rear Wheel With ABS

AOZ NO：LD1524

OE Numbers:S202F2603030501, 65BWKH39, S301118-0800

Cross Reference Numbers:VKBA7102, R17612, 9220104K, 713611437

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
CHANGAN---S202F2603030501	SKF:VKBA7102
65BWKH39	SNR:R17612
S301118-0800	GSP:9220104K
UNIT-2WD-R-ABS	NTN:WBK17058
SL930905	FAG:713611437
CH-S202F2603030501	FEBI BILSTEIN:173177
DAC65390047ABS	MOOG:SA-WB-12232
W6539	OPTIMAL:964602

Fit Vehicles
CHANGAN
UNI-T 2WD Rear ABS	2020–Present

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: What makes your bearing steel superior?

A: We use ultra-high purity bearing steel (e.g., GCr15) with extremely low oxygen and titanium content. This maximizes fatigue resistance and prevents premature internal spalling under heavy loads.

Q2: How do you ensure the flange can handle high stress?

A: The flange is forged from high-strength carbon steel and undergoes precise heat treatment. We also use Finite Element Analysis (FEA) to optimize the design, ensuring stress is evenly distributed while keeping the weight low.

Q3: What is the "riveting" process used in your assembly?

A: We use advanced orbital riveting (swaging) technology instead of traditional nuts. This creates a permanent, high-precision lock without damaging the threads, significantly improving reliability and reducing overall weight.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
