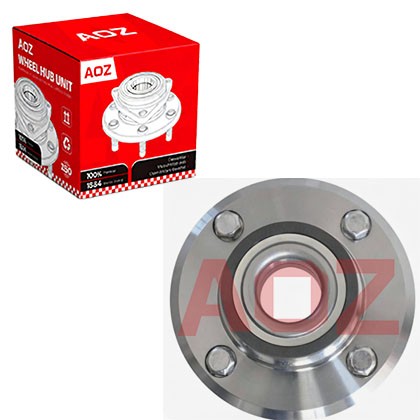

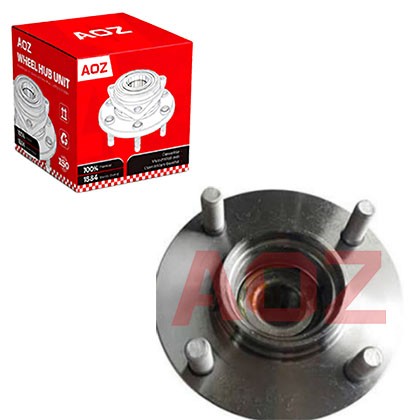

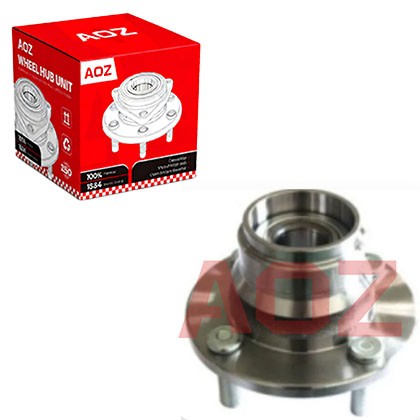

wheel hub bearing unit forCHANGAN-350282\1202011\DAC30620037\SL930412\CH-350282\1202011-WO\DAC30620037-NONABS\W3062

Fit Vehicles /Application :CHANGAN Benni MINI,Alto, CX20, W/O ABS

AOZ NO:LD642

OE Numbers:350282, 1202011, DAC30620037, SL930412

Cross Reference Numbers:VKBA6842, R17360, 9216028K, 713611090

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles /Application :CHANGAN Benni MINI,Alto, CX20, W/O ABS

AOZ NOLD642

OE Numbers:350282, 1202011, DAC30620037, SL930412

Cross Reference Numbers:VKBA6842, R17360, 9216028K, 713611090

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers







OEM-NUMBER

Cross Reference code

CHANGAN----350282

SKF:VKBA6842

1202011

SNR:R17360

DAC30620037

GSP:9216028K

SL930412

NTN:WBK17020

CH-350282

FAG:713611090

1202011-WO

FEBI BILSTEIN:172235

DAC30620037-NONABS

MOOG:SA-WB-11942

W3062

OPTIMAL:963950





Fit Vehicles


CHANGAN


Benni MINI

2010–2016

Alto

2009–2016

CX20

2011–2019


GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes





ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers















FAQs

Q1: What is the impact of upgrading to larger wheels?

A: Upgrading to larger wheels enhances visual appeal and handling stability. However, the thinner tire sidewalls will result in a harsher ride and make the tires more prone to sidewall bulges when hitting potholes. Additionally, heavier wheels can increase fuel consumption and reduce acceleration performance.

Q2: Which core parameters must match perfectly when upgrading wheels?

A: Bolt Pattern (PCD), Offset (ET), Center Bore, and Width (J-value) are all critical. An incorrect PCD means the wheel won't fit. A wrong offset can cause the wheel to rub against the fender or suspension components. If the center bore is too large, hub-centric rings are mandatory to prevent severe steering wheel vibrations at high speeds.

Q3: Is a wheel alignment necessary after changing wheels?

A: If you are replacing wheels with the exact same specifications and they are installed correctly, an alignment is usually not required. However, if you change the wheel/tire size or experience issues like pulling to one side or uneven tire wear, a professional alignment is highly recommended.
