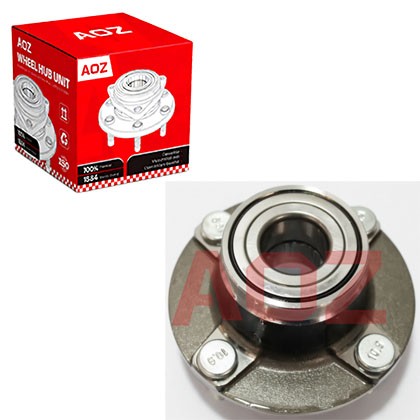

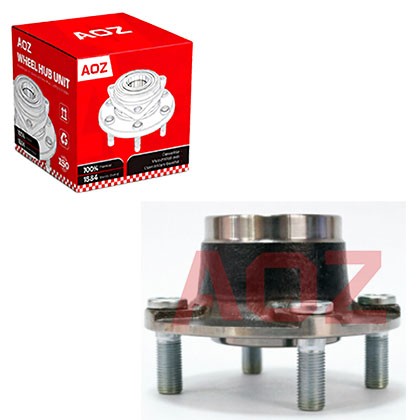

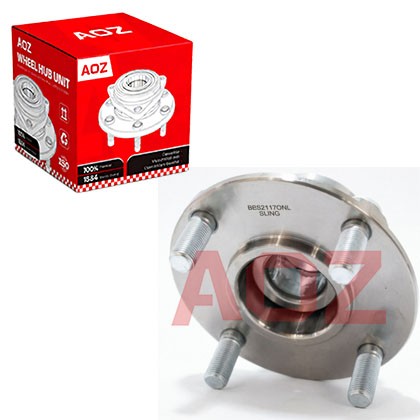

wheel hub bearing unit forDFM-35016\3501600-01\DAC38720040\WH210184\DK-35016\RM930268

Fit Vehicles /Application :DFSK K07

AOZ NO:LD714

OE Numbers:35016, 3501600-01, DAC38720040, WH210184

Cross Reference Numbers:DAC38720040, WH210184, DK-35016, RM930268

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :DFSK K07

AOZ NO:LD714

OE Numbers:35016, 3501600-01, DAC38720040, WH210184

Cross Reference Numbers:DAC38720040, WH210184, DK-35016, RM930268

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
DFM---35016	A.B.S.: 201709
3501600-01	SKF: VKBA7562
DAC38720040	GSP: 9219504K
WH210184	SNR: R17954
DK-35016	FAG: 713611777
RM930268	FEBI BILSTEIN: 173279

Fit Vehicles
DFM
K07	2005-2015
K07S	2014-2020
K17	2006-2014

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: How should I store hub units in my warehouse?

A: Store them horizontally in a clean, dry, and climate-controlled environment. Avoid stacking them too high to prevent deformation of the bottom units.

Q2: Can a sealed hub unit expire?

A: The unit itself doesn't expire, but the grease can degrade over many years if stored in extreme heat or direct sunlight. Proper storage ensures it remains ready for installation.

Q3: Do I need to rotate the bearings during long-term storage?

A: No, modern sealed units do not require rotation during storage. Just keep them away from strong magnetic fields to protect the ABS encoder.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
