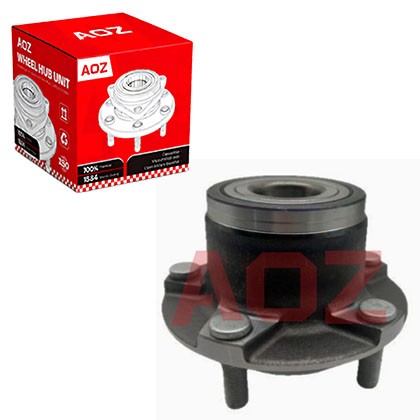

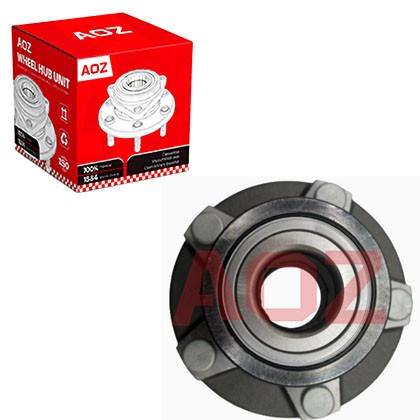

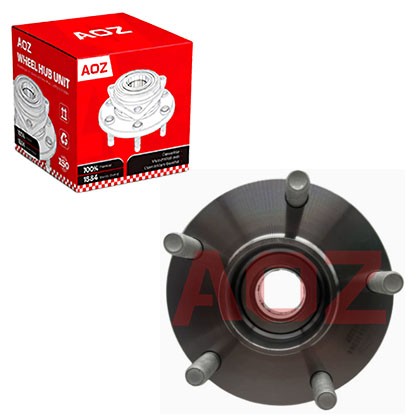

wheel hub bearing unit forDFM-DACF3213668YA1\3501610-01\3501610-CA01\DACF3213668\WH210175\RM930262

Fit Vehicles /Application :DFSK C31, C32

AOZ NO:LD713

OE Numbers:DACF3213668YA1, 3501610-01, 3501610-CA01, DACF3213668

Cross Reference Numbers:3501610-01, 3501610-CA01, WH210175, RM930262

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :DFSK C31, C32

AOZ NO:LD713

OE Numbers:DACF3213668YA1, 3501610-01, 3501610-CA01, DACF3213668

Cross Reference Numbers:3501610-01, 3501610-CA01, WH210175, RM930262

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
DFM---DACF3213668YA1	A.B.S.: 201703
3501610-01	SKF: VKBA7552
3501610-CA01	GSP: 9219496K
DACF3213668	SNR: R17946
WH210175	FAG: 713611769
RM930262	FEBI BILSTEIN: 173271

Fit Vehicles
DFM
C31（Front Wheel,5 bolts）	2014-2022
C32（Front Wheel,5 bolts）	2014-2022

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Do I need special tools to install the hub unit?

A: Yes. A hydraulic press and specific torque wrenches are required. Never use a hammer to strike the hub directly, as it can cause internal damage.

Q2: Does the installation environment matter?

A: Absolutely. The installation area must be clean and free of dust or sand. Even microscopic particles entering the bearing can significantly reduce its lifespan.

Q3: Can I reuse the old axle nut or bolts?

A: It is highly recommended to use new axle nuts or bolts. Reusing old fasteners can lead to improper clamping force and potential wheel detachment.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
