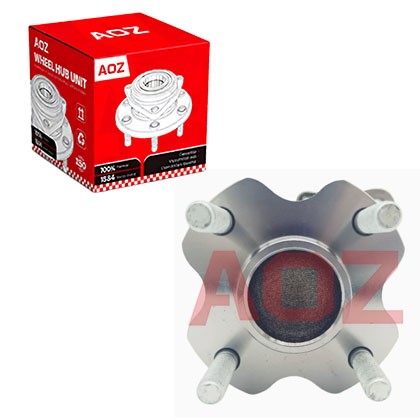

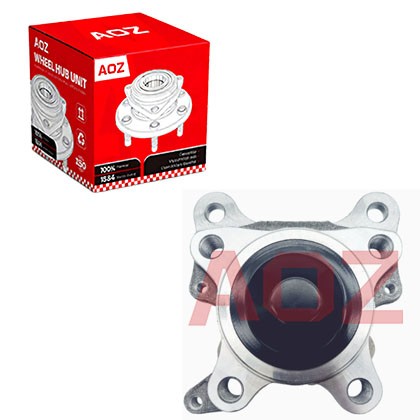

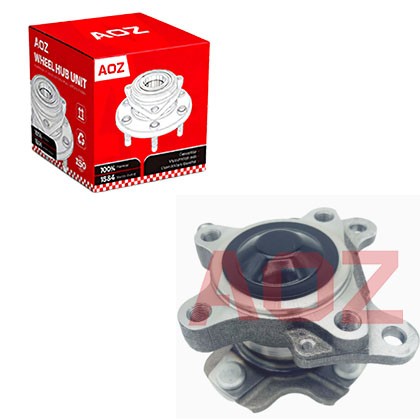

Fit Vehicles /Application :GREAT WALL HAVAL H1 Rear Wheel Without ABS
AOZ NO：LD683
OE Numbers:3104100-M23, 3104100M23, DAC2F76R6417, SL930840
Cross Reference Numbers: VKBA7063, R17545, 9219095K, 713611368
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application :GREAT WALL HAVAL H1 Rear Wheel Without ABS
AOZ NO：LD683
OE Numbers:3104100-M23, 3104100M23, DAC2F76R6417, SL930840
Cross Reference Numbers: VKBA7063, R17545, 9219095K, 713611368
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
GREAT WALL---3104100-M23 | SKF:VKBA7063 |
3104100M23 | SNR:R17545 |
DAC2F76R6417 | GSP:9219095K |
SL930840 | NTN:WBK17051 |
HAVAL-H1-REAR-NOABS | FAG:713611368 |
GW-3104100-M23 | FEBI BILSTEIN:172870 |
DAC76640048 | MOOG:SA-WB-12175 |
W7664-NOABS | OPTIMAL:964375 |
Fit Vehicles | |
GREAT WALL | |
HAVAL H1 Rear Without ABS | 2014–2021 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |
Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |
FAQs
Q1: Does the installation environment matter?
A: Yes. The area must be clean and free of dust or sand, as even microscopic particles can significantly reduce the bearing's lifespan.
Q2: Can I reuse the old axle nut or bolts?
A: It is highly recommended to use new fasteners, as reusing old ones can lead to improper clamping force and potential wheel detachment.
Q3: What should I check on the vehicle before installing a new hub?
A: Always inspect the steering knuckle and mounting surfaces for wear or corrosion, as minor damage can cause misalignment and premature failure.
"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
