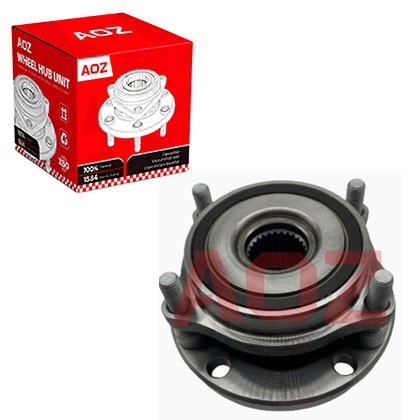

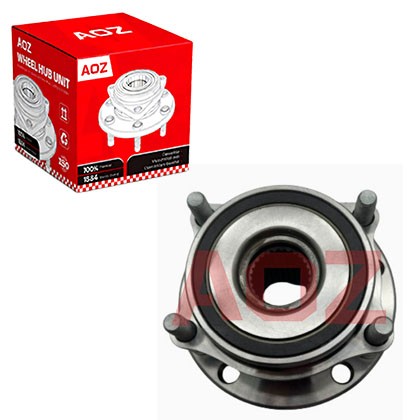

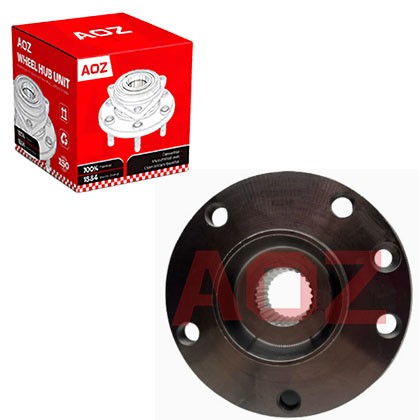

Wheel-hub-bearing-unit-for-GAC-Trumpchi-3510003BAC0000

Wheel-hub-bearing-unit-for-GAC-Trumpchi-3510003BAC0000

Fit Vehicles /Application :GAC-Trumpchi-GA5

AOZ NO:L-415

OE Numbers:3510003BAC0000

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :GAC-Trumpchi-GA5

AOZ NO:L-415

OE Numbers:3510003BAC0000

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
GAC-Trumpchi-3510003BAC0000

Fit Vehicles
GAC-Trumpchi
GA5	2010-2016

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: How do I know if a hub has been sitting on the shelf for too long?

A: Inspect the mounting flange before installation. Light surface rust can be cleaned, but deep pitting means the part should be replaced.

Q2: Do you provide technical support if I get stuck during installation?

A: Absolutely. Our technical support team can provide installation torque specs, wiring diagrams, and troubleshooting advice via phone or email.

Q3: What does "LWD" or "RWD" mean in part descriptions?

A: They stand for Left Wheel Drive (Driver Side) and Right Wheel Drive (Passenger Side). Front hubs are often side-specific due to ABS sensor wire routing.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
