Fit Vehicles /Application :GAC-Trumpchi-GS5/GA6
AOZ NO:L-440
OE Numbers:3510003BAD0000
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application :GAC-Trumpchi-GS5/GA6
AOZ NO:L-440
OE Numbers:3510003BAD0000
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
GAC-Trumpchi-3510003BAD0000 | |
Fit Vehicles | |
GAC-Trumpchi | |
GA6 | 2014-Present |
GS5 | 2012-2019 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

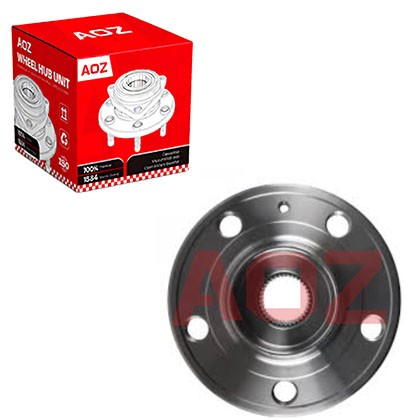

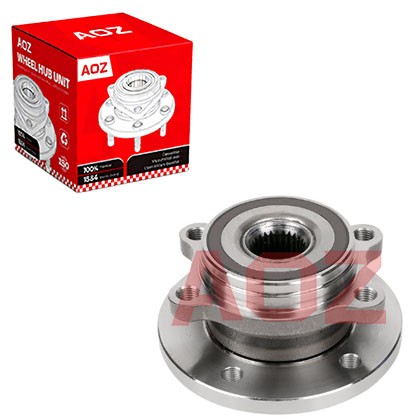

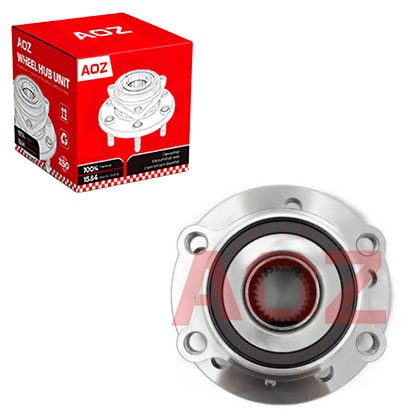

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |
FAQs
Q1: Can I use anti-seize on the hub mounting surface?
A: Yes, but use it sparingly. A very thin layer prevents future rust, but too much can alter the seating position and cause vibration.
Q2: How do I know if my hub has an integrated ABS sensor?
A: Integrated hubs have a built-in magnetic encoder ring on the inner seal and often include a wiring harness connector.
Q3: What happens if I over-torque the axle nut?
A: Over-torquing crushes the internal bearing rollers, eliminating clearance. This creates extreme heat and causes the new hub to
"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
