Fit Vehicles /Application :GAC-Trumpchi-GA8\GS8
AOZ NO:L-488
OE Numbers:3510003CAD0000
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application :GAC-Trumpchi-GA8\GS8
AOZ NO:L-488
OE Numbers:3510003CAD0000
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
GAC-Trumpchi-3510003CAD0000 | |
Fit Vehicles | |
GAC-Trumpchi | |
GA8 | 2016-2020 |
GS8 | 2016-Present |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

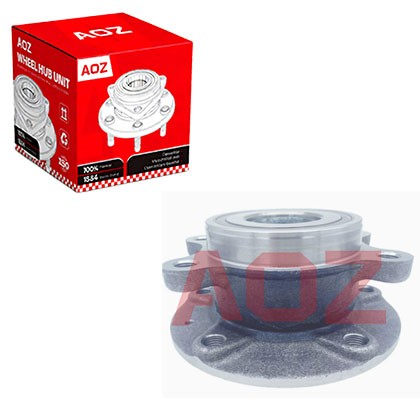

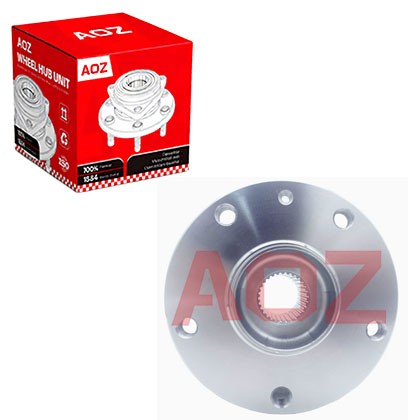

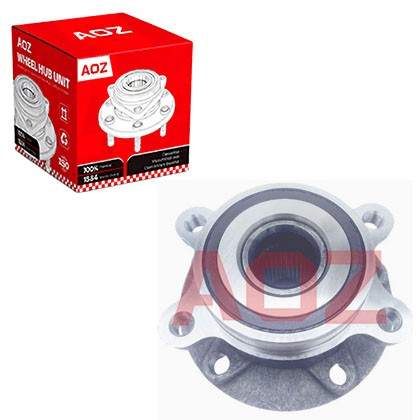

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |
FAQs
Q1: Can a bad hub cause my brake pedal to pulsate?
A: Yes. Worn bearings allow the brake rotor to wobble side-to-side. This runout pushes the pads back and forth, creating a pulsating feeling when braking.
Q2: Is it normal for the new hub to have slight side-to-side play?
A: No. A new hub should have zero measurable play. Any lateral movement indicates a defective unit or improper installation.
Q3: What happens if I install the hub backwards?
A: The ABS sensor won't read the magnetic encoder ring, causing the ABS and traction control lights to illuminate immediately.
