Fit Vehicles /Application :GAC-Trumpchi-GA5 HYBIRD
AOZ NO:L-542
OE Numbers:3520007BAC0200
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application :GAC-Trumpchi-GA5 HYBIRD
AOZ NO:L-542
OE Numbers:3520007BAC0200
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
GAC-Trumpchi-3520007BAC0200 | |
Fit Vehicles | |
GAC-Trumpchi | |
GA5 HYBIRD | 2014-2016 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

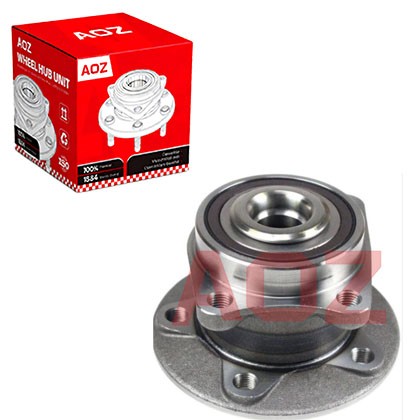

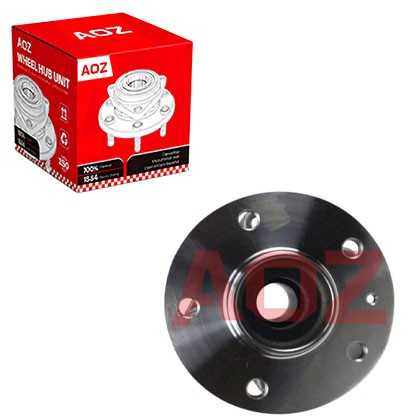

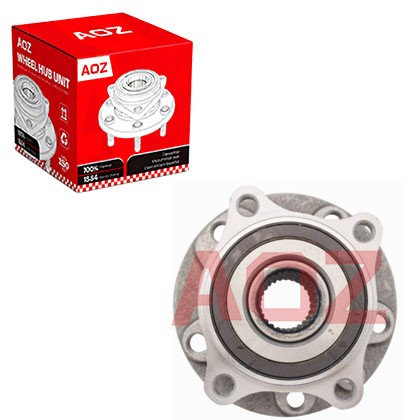

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |
FAQs
Q1: What is the difference between a standard hub and an ABS-integrated hub?
A: Standard hubs only support the wheel. ABS-integrated hubs have a magnetic encoder ring. Using the wrong type will trigger an ABS warning light.
Q2: My vehicle has an aluminum steering knuckle. Are there special installation rules?
A: Yes. Aluminum is soft and damages easily. Always use a press tool, follow exact torque specs, and never reuse the original bolts.
Q3: What are torque-to-yield bolts?
A: These bolts stretch during installation for maximum clamping force. They are single-use only and must be replaced with new ones.
"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
