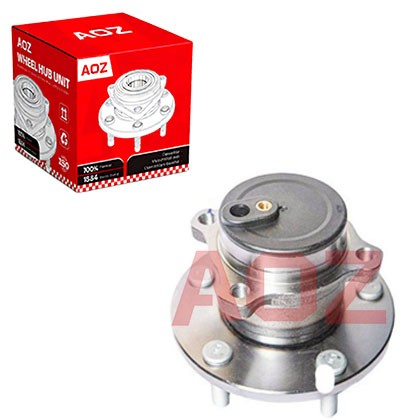

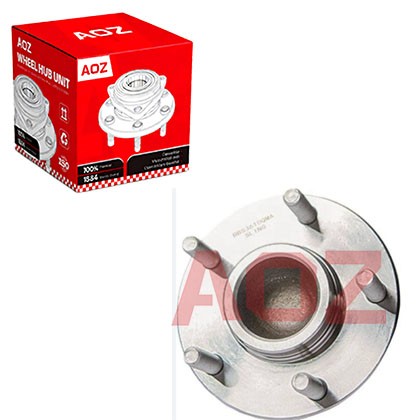

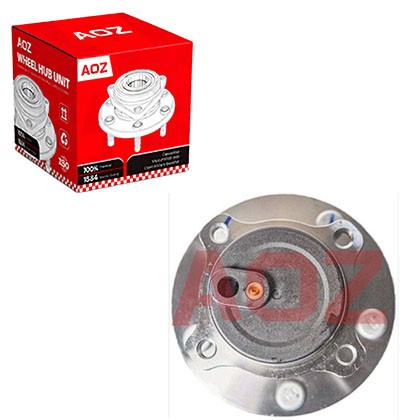

Wheel-hub-bearing-unit-for-HAIMA-FA14-26-15X

Wheel-hub-bearing-unit-for-HAIMA-FA14-26-15X

Fit Vehicles /Application :HAIMA-M5,M6,Family IV

AOZ NO:LD792

OE Numbers:FA14-26-15X

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :HAIMA-M5,M6,Family IV

AOZ NO:LD792

OE Numbers:FA14-26-15X

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
HAIMA-FA14-26-15X

Fit Vehicles
HAIMA
M5	2014-2017
M6	2015-2017
Family IV	2018-2019

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Can I use a standard socket to tighten the axle nut?
A: You can use a standard socket, but you must use a calibrated torque wrench to achieve the exact specification. Never use an impact wrench for final tightening, as it can easily crush the bearing.

Q2: Why is my new hub making a scraping noise right after installation?
A: This is usually caused by the brake dust shield getting bent during installation and rubbing against the new hub. Carefully bend the shield back to create a safe clearance gap.

Q3: Does the weight of the vehicle affect hub lifespan?
A: Absolutely. Heavier vehicles, such as SUVs, trucks, and EVs, place significantly more radial load on the bearings. This extra stress can lead to a shorter service life compared to lighter passenger cars.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
