Wheel-hub-bearing-unit-for-JAC-3104101U7152

Fit Vehicles /Application :JAC-J7/Benjoy, 4 holes

AOZ NO:LD746

OE Numbers:3104101U7152

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles /Application :JAC-J7/Benjoy, 4 holes

AOZ NO:LD746

OE Numbers:3104101U7152

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

JAC-3104101U7152






Fit Vehicles


JAC


J7 Benjoy

2008-Present

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

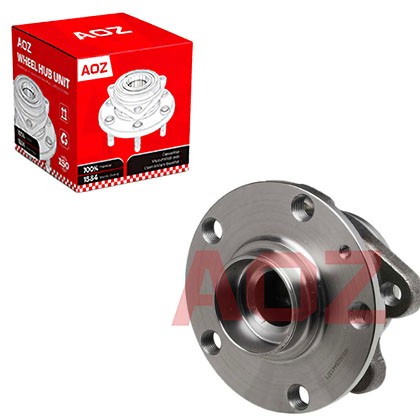

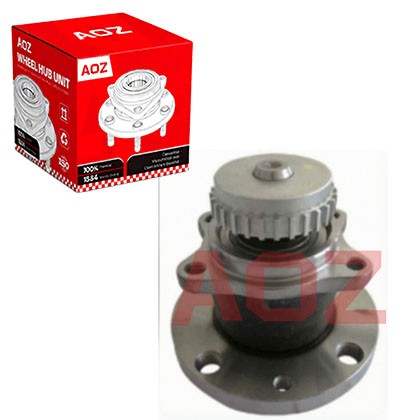

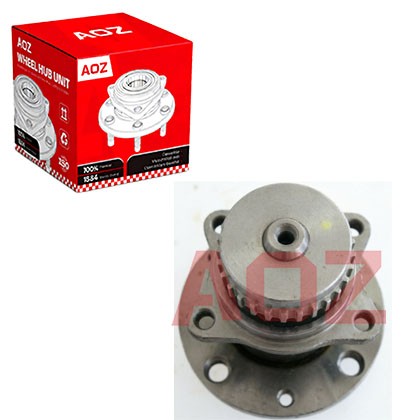

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes





ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers














FAQs

Q1: Can a bad hub cause my ABS and traction control lights to turn on?

A: Yes. Most modern hubs have a built-in magnetic encoder ring. If this ring gets damaged, dirty, or the hub is installed incorrectly, the ABS sensor won't receive a proper signal, triggering the warning lights.



Q2: Do I need to replace the brake rotor when I replace the hub?

A: Not necessarily. If the rotor is still within the minimum thickness specification and doesn't have deep grooves or heat spots, it can be reused. However, a failing hub can sometimes cause the rotor to warp, so always inspect it closely.



Q3: Can I use anti-seize on the wheel studs?

A: No. Wheel studs should always be installed dry. Applying anti-seize or grease changes the friction coefficient, which can lead to over-torquing and stretching the studs when you tighten the lug nuts.

"Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
