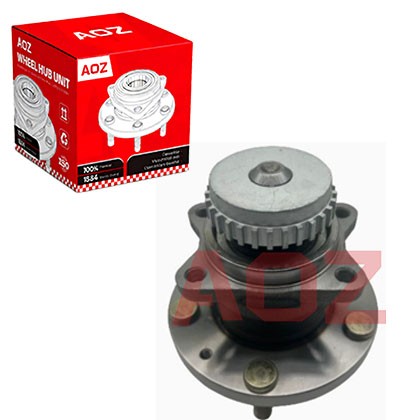

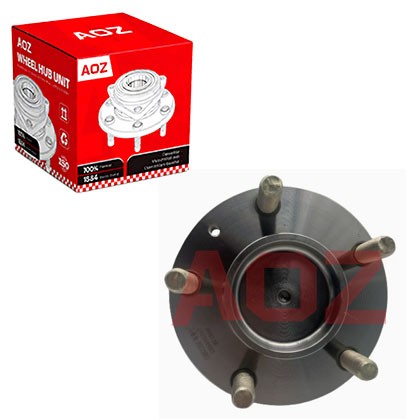

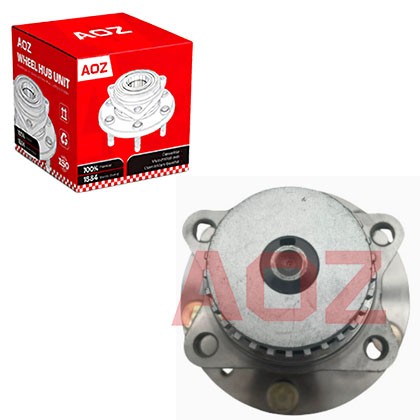

Wheel-hub-bearing-unit-for-JAC-3104401U7151

Wheel-hub-bearing-unit-for-JAC-3104401U7151

Fit Vehicles /Application :JAC-J7/Benjoy,5 bolts,new model

AOZ NO:LD747

OE Numbers:3104401U7151

Cross Reference Numbers:3104401U7151.1

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :JAC-J7/Benjoy,5 bolts,new model

AOZ NO:LD747

OE Numbers:3104401U7151

Cross Reference Numbers:3104401U7151.1

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
JAC-3104401U7151	3104401U7151.1

Fit Vehicles
JAC
J7 Benjoy(new model)	2019-Present

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Do I need to replace both hubs if only one is failing?

A: It is not mandatory, but highly recommended. Since both hubs endure similar mileage and driving conditions, replacing them as a pair ensures balanced handling and saves you from paying for a second labor fee later.

Q2: Is it safe to use an impact wrench to tighten the axle nut?

A: No. Impact wrenches can easily over-torque the nut, which crushes the internal bearing rollers and causes premature failure. Always use a calibrated torque wrench to the exact factory specification.

Q3: Why is my steering wheel shaking after the hub replacement?

A: This usually indicates that the hub was not seated perfectly flat against the knuckle, or the wheel studs were not torqued in the correct star pattern. It could also mean the brake rotor needs to be resurfaced.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
