Fit Vehicles /Application Chery Eastar, A5, B11
AOZ NO：L-034
OE Numbers: A21-3001030，7467256，9812619，DACF2813076
Cross Reference Numbers:IX-01394, DSLK-3071, WBH-CH059
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application Chery Eastar, A5, B11
AOZ NO：L-034
OE Numbers: A21-3001030，7467256，9812619，DACF2813076
Cross Reference Numbers:IX-01394, DSLK-3071, WBH-CH059
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER: | Cross Reference code |
CHERY A21-3001030 | AIX PARTS: IX-01394 |
7467256 | DI-SOLIK: DSLK-3071 |
9053828 | WBH: WBH-CH059 |
9812619 | OPTIMAL: 961839 |
9053827 | METZGER: WM 2271 |
1603248 | MOOG: CH-WB-12039 |
1603249 | NIPPARTS: N4701089C |
CHERY （DACF）2813076 |
Fit Vehicles | |
CHERY | |
A5 | 2006–2014 |
Fora | 2007–2013 |
Elara | 2006–2014 |
GM | |
Opel | 2001–2011 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

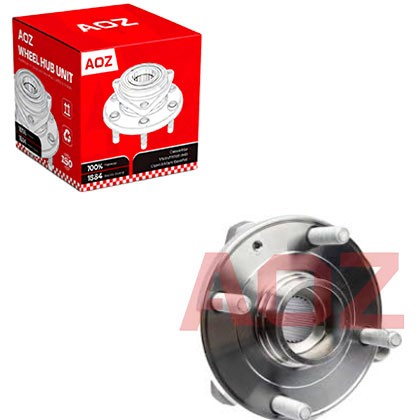

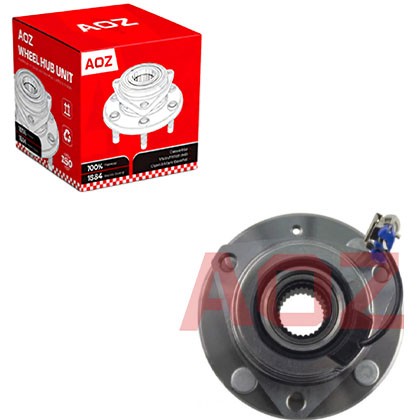

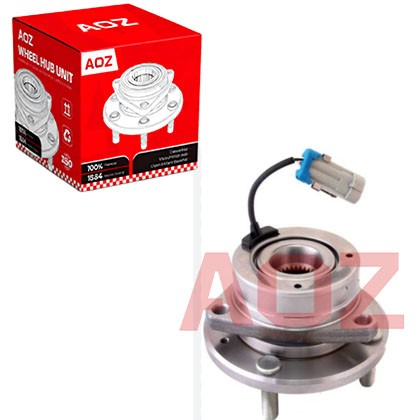

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |
FAQs
Q1: Why your hub bearings have longer service life than ordinary factory?
A: We use high purity steel, precision heat treatment and advanced sealing technology to extend service life greatly.
Q2: Do you update cross reference numbers regularly?
A: We update aftermarket cross codes and new car model data every month to keep data accurate.
Q3: Can you support customer exclusive batch marking?
A: We can print customer batch number, order number and customized marks on outer package freely.
"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
