Fit Vehicles /Application CheryTiggo 4WD
AOZ NO：L-420
OE Numbers: T11-3301210,9004252015, 722020039,10767301
Cross Reference Numbers:IX-01397, DSLK-3074, WBH-CH062
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application CheryTiggo 4WD
AOZ NO：L-420
OE Numbers: T11-3301210,9004252015, 722020039,10767301
Cross Reference Numbers:IX-01397, DSLK-3074, WBH-CH062
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER: | Cross Reference code |
CHERY---- --T11-3301210 | AIX PARTS: IX-01394 |
96347177 | DI-SOLIK:DSLK-3074 |
4567031 | WBH: WBH-CH062 |
10767301 | OPTIMAL: 961842 |
9025203014 | METZGER: WM 2274 |
4241042020 | MOOG: CH-WB-12042 |
722020039 | NIPPARTS: N4701092C |
CHERY （DACF）3011080 |
Fit Vehicles | |
Tiggo | |
T11 | 2005–2014 |
3 | 2006–2013 |
FL | 2007–2015 |
Motor | |
DR5 | 2008–2014 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

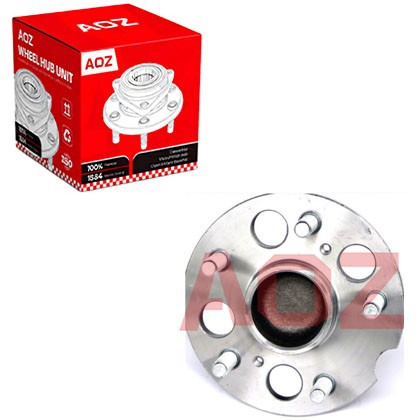

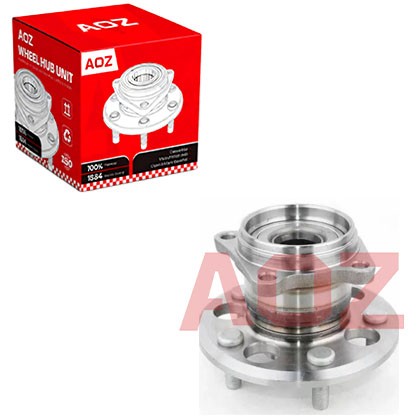

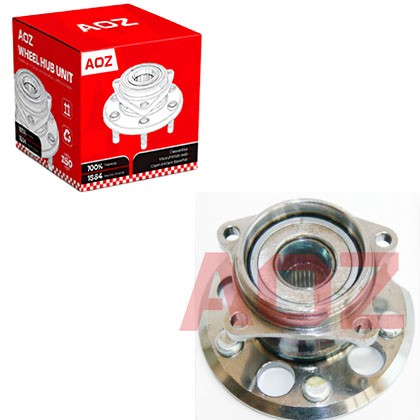

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |
FAQs
Q1: What raw materials do you adopt for your wheel hub bearing units?
A: We use GCr15 bearing steel for bearing rings and balls, 55# high carbon steel for flange, NBR + stainless steel composite seals and grade 10.9 wheel studs.
Q2: Does T11-3301210 fit both left and right rear wheels of Chery Tiggo T11?
A: Yes, this rear hub unit is universal for left and right rear axles, no difference in installation.
Q3: Is T11-3301210 equipped with ABS gear ring? How many teeth does it have?
A: It comes with an integrated 42-teeth ABS signal ring, fully compatible with original vehicle ABS sensors.
