Fit Vehicles /Application CheryQQ,QQ3
AOZ NO：LD602
OE Numbers:S11-3301030AB，DACF2513980，S11-3301030
Cross Reference Numbers: IX-01379, DSLK-3056, WBH-CH044
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application CheryQQ,QQ3
AOZ NO：LD602
OE Numbers:S11-3301030AB，DACF2513980，S11-3301030
Cross Reference Numbers: IX-01379, DSLK-3056, WBH-CH044
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER： | Cross Reference code |
CHERY — S11-3301030AB | AIX PARTS: IX-01379 |
S11-3301030 | DI-SOLIK: DSLK-3056 |
CHERY （DACF）2411062 | WZB: WBH-CH044 |
OPTIMAL: 961824 | |
METZGER: WM 2256 | |
MOOG: CH-WB-12024 | |
NIPPARTS: N4701074C |
Fit Vehicles | |
CHERY | |
QQ S11 | 2003–2012 |
QQ3 | 2006–2013 |
Chery Sweet | 2004–2011 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

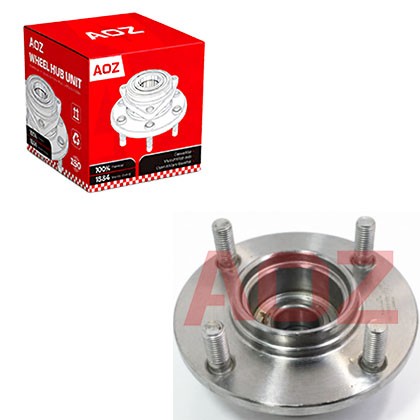

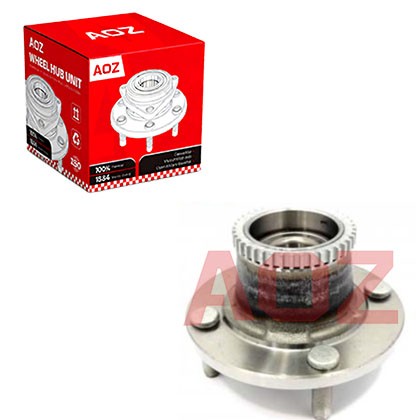

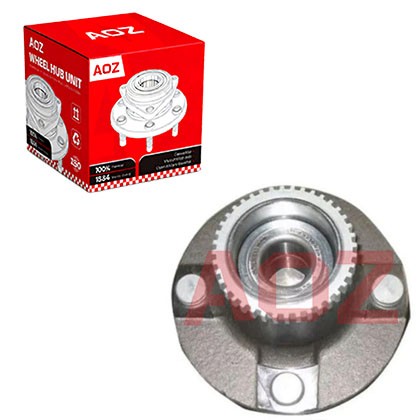

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |
FAQs
Q1: What differences exist between front and rear hub assemblies?
A: Front hubs are lighter with smaller flange, rear units carry larger load and some are equipped with ABS signal rings.
Q2: How do you calculate the total shipping cost for bulk orders?
A: Shipping cost depends on total weight, destination port and chosen transport method, we will list it clearly in quotation.
Q3: Do you provide third-party inspection service for goods?
A: We accept third-party inspection companies to check product quality and quantity before loading containers.
"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
