Fit Vehicles /Application CheryQQ,QQ3
AOZ NO：LD601
OE Numbers:S11-3301030BA、S11-3301030、DACF2411062
Cross Reference Numbers: IX-01378、DSLK-3055、WBH-CH043
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application CheryQQ,QQ3
AOZ NO：LD601
OE Numbers:S11-3301030BA、S11-3301030、DACF2411062
Cross Reference Numbers: IX-01378、DSLK-3055、WBH-CH043
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER： | Cross Reference code |
CHERY — S11-3301030BA | AIX PARTS: IX-01378 |
S11-3301030 | DI-SOLIK: DSLK-3055 |
CHERY （DACF）2411062 | WZB: WBH-CH043 |
OPTIMAL: 961823 | |
METZGER: WM 2255 | |
MOOG: CH-WB-12023 | |
NIPPARTS: N4701073C |
Fit Vehicles | |
CHERY | |
QQ S11 | 2003–2012 |
QQ3 | 2006–2013 |
Chery Sweet | 2004–2011 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

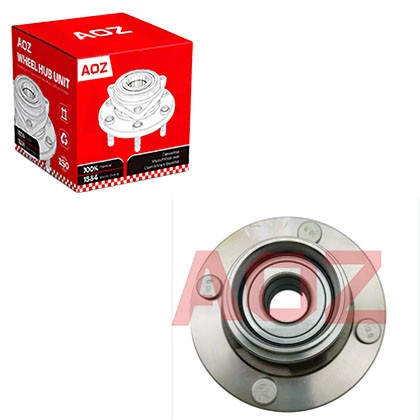

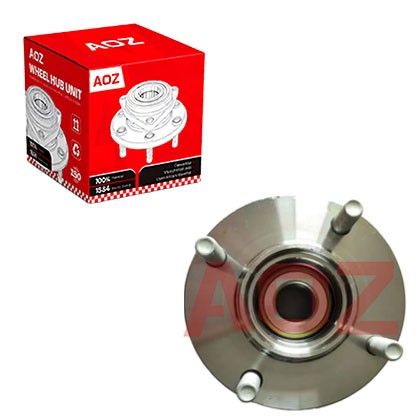

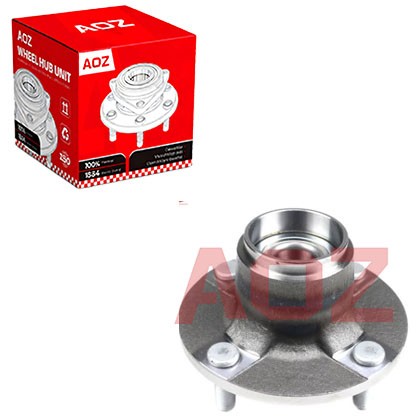

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |
FAQs
Q1: Is it allowed to adjust order quantity after deposit payment?
A: Minor quantity adjustments are acceptable within 3 working days after deposit, large changes need re-negotiation.
Q2: Can you print customized barcodes on product outer boxes?
A: We support printing customer exclusive barcodes, part codes and brand logos on color boxes as requested.
Q3: Which global markets do your hub bearings mainly export to?
A: Our products are widely sold to Southeast Asia, Middle East, South America, Eastern Europe and Africa.
