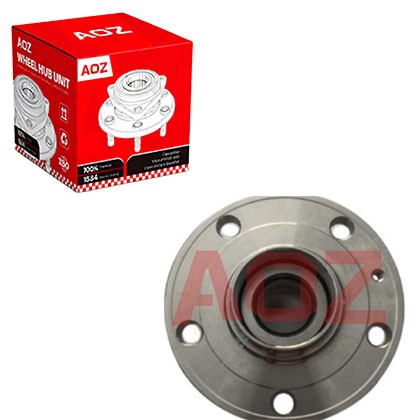

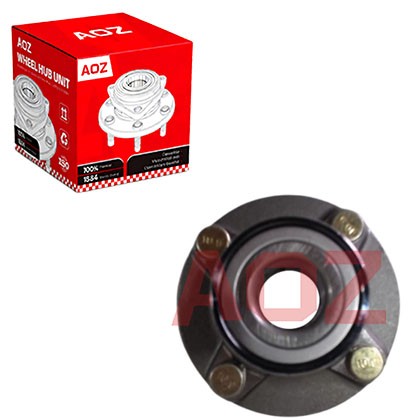

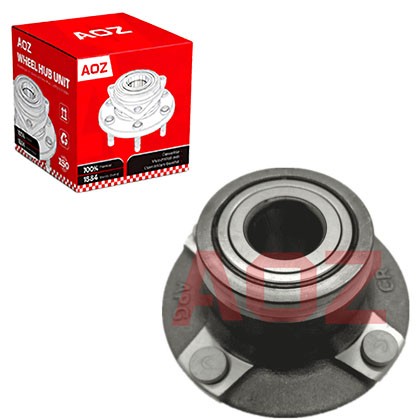

wheel hub bearing unit forCHANGAN-35011\3501130-T01\3501130\R101-3103011\DACF3103010\SL930067\CH-310301\DAC31620048

Fit Vehicles /Application :CHANGAN HONOR

AOZ NO:LD639

OE Numbers:35011, 3501130-T01, 3501130, R101-3103011

Cross Reference Numbers:VKBA6820, R17332, 9216008K, 713611060

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles /Application :CHANGAN HONOR

AOZ NOLD639

OE Numbers:35011, 3501130-T01, 3501130, R101-3103011

Cross Reference Numbers:VKBA6820, R17332, 9216008K, 713611060

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers







OEM-NUMBER

Cross Reference code

CHANGAN----35011

SKF:VKBA6820

3501130-T01

SNR:R17332

3501130

GSP:9216008K

R101-3103011

NTN:WBK17015

DACF3103010

FAG:713611060

SL930067

FEBI BILSTEIN:172208

CH-310301

MOOG:SA-WB-11920

DAC31620048

OPTIMAL:963920





Fit Vehicles


CHANGAN


HONOR

2012–2022

HONOR S

2017–2023

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes





ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers
















FAQs

Q1: What is the difference between Gen 2 and Gen 3 wheel hub units?

A: Gen 2 units integrate the inner ring with the hub flange for easier installation. Gen 3 units take it a step further by integrating the ABS sensor and combining the outer ring with the steering knuckle flange, offering higher modularity and lighter weight.

Q2: Can I upgrade my Gen 1 hub to a Gen 3 hub?

A: No, different generations have distinct mounting interfaces and dimensions. You must strictly replace the hub unit with the exact generation specified by the vehicle manufacturer to ensure safety and proper fitment.

Q3: Why are modern hub units sealed and maintenance-free?

A: Modern units are factory-assembled with high-precision pre-adjusted clearances and filled with premium grease. This sealed design prevents contamination and eliminates the need for periodic cleaning or repacking, reducing maintenance costs.
