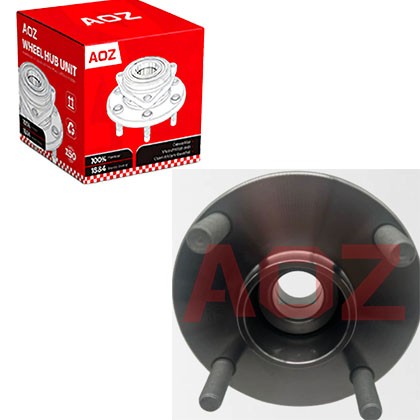

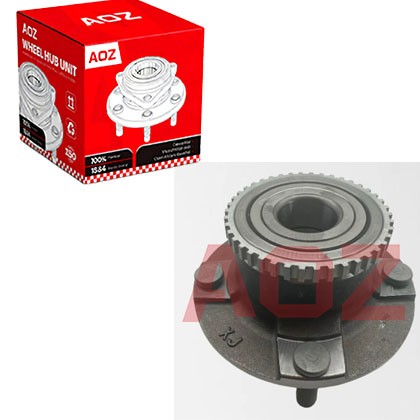

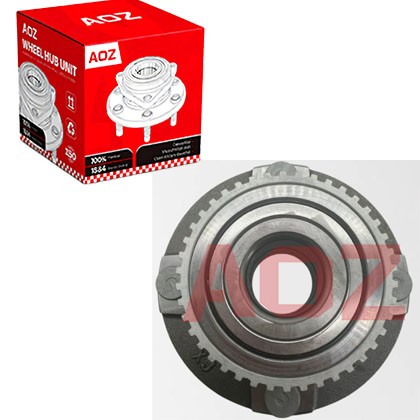

wheel hub bearing unit forCHANGAN-3501130-T01\3501130-ABS\35011ABS\R101-3103011\DACF3103010\SL930067\CH-310301-ABS\DAC31620048ABS

Fit Vehicles /Application :CHANGAN HONOR (With ABS Front Wheel Hub)

AOZ NO:LD640

OE Numbers:3501130-ABS, 35011ABS, R101-3103011, DACF3103010

Cross Reference Numbers:VKBA6821, R17333, 9216009K, 713611061

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles /Application :CHANGAN HONOR (With ABS Front Wheel Hub)

AOZ NOLD640

OE Numbers:3501130-ABS, 35011ABS, R101-3103011, DACF3103010

Cross Reference Numbers:VKBA6821, R17333, 9216009K, 713611061

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers







OEM-NUMBER

Cross Reference code

CHANGAN---3501130-T01

SKF:VKBA6821

3501130-ABS

SNR:R17333

35011ABS

GSP:9216009K

R101-3103011

NTN:WBK17016

DACF3103010

FAG:713611061

SL930067

FEBI BILSTEIN:172209

CH-310301-ABS

MOOG:SA-WB-11921

DAC31620048ABS

OPTIMAL:963921






Fit Vehicles


CHANGAN


HONOR (ABS)

2012–2022

HONOR S (ABS)

2017–2023




GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes





ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers















FAQs

Q1: Are your hub units suitable for Electric Vehicles (EVs)?

A: Yes, we offer specialized hub units designed for EVs. They are engineered to withstand the higher instantaneous torque and heavier vehicle weight typical of electric cars.

Q2: Do EVs cause faster wear on wheel bearings?

A: EVs are generally heavier and have regenerative braking, which puts different stress loads on the hub. Our EV-specific units feature reinforced dynamic load capacities to handle these unique conditions and ensure long service life.

Q3: Are there any special installation notes for EV hubs?

A: Always follow the specific torque specifications for EVs, as they can differ from traditional ICE vehicles. Additionally, ensure the ABS sensor connector is securely plugged in, as EVs rely heavily on precise wheel speed data for traction and braking control.

 "Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
