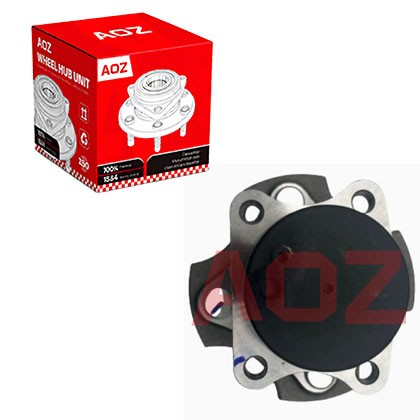

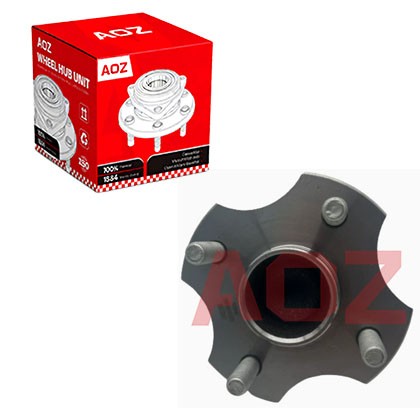

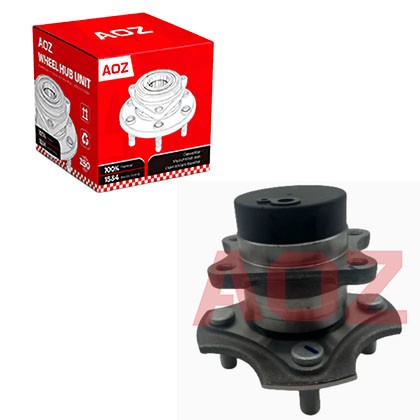

Fit Vehicles /Application :GREAT WALL HAVAL M2, HAVAL M4, GREAT WALL FLORID Rear Wheel Hub Bearing
AOZ NO：LD681
OE Numbers:104100-S08, 3404100-S08, DAC38700037, SL930564
Cross Reference Numbers: VKBA6900, R17432, 9218066K, 713611162
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application :GREAT WALL HAVAL M2, HAVAL M4, GREAT WALL FLORID Rear Wheel Hub Bearing
AOZ NO：LD681
OE Numbers:104100-S08, 3404100-S08, DAC38700037, SL930564
Cross Reference Numbers: VKBA6900, R17432, 9218066K, 713611162
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
GREAT WALL---3104100-S08 | SKF:VKBA6900 |
3404100-S08 | SNR:R17432 |
DAC38700037 | GSP:9218066K |
SL930564 | NTN:WBK17034 |
HAVAL-M2-M4-FLORID-REAR | FAG:713611162 |
GW-3104100-S08 | FEBI BILSTEIN:172306 |
DAC38700037 | MOOG:SA-WB-12014 |
W3870 | OPTIMAL:964020 |
Fit Vehicles | |
GREAT WALL | |
HAVAL M2 Rear | 2010–2015 |
HAVAL M4 Rear | 2012–2018 |
FLORID Rear | 2008–2014 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |
Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |
FAQs
Q1: Can I hammer the new hub into place?
A: Never. Always use a hydraulic press to avoid internal damage.
Q2: Do I need to grease the new hub?
A: No. Modern hub units are pre-greased and sealed for life.
Q3: Should I reuse the old axle nut?
A: No. Always use a new axle nut to ensure correct torque.
