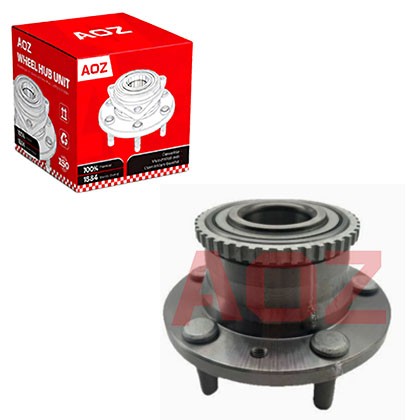

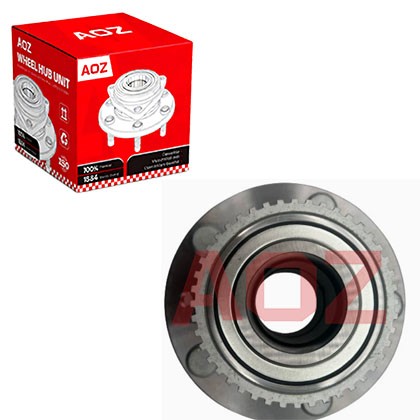

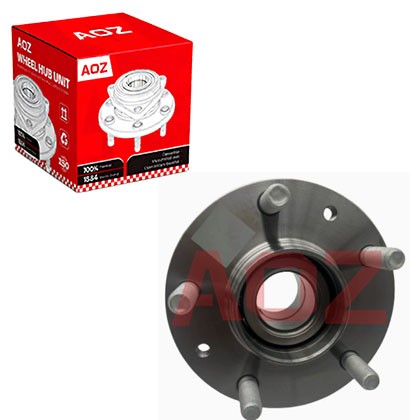

Wheel-hub-bearing-unit-for-HAIMA-36BWK02

Wheel-hub-bearing-unit-for-HAIMA-36BWK02

Fit Vehicles /Application :HAIMA-Freema, ABS

AOZ NO:LD237

OE Numbers:36BWK02

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :HAIMA-Freema, ABS

AOZ NO:LD237

OE Numbers:36BWK02

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
HAIMA-36BWK02

Fit Vehicles
HAIMA
Freema	2008-2013

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Why does the hub make a clicking sound when I accelerate from a stop?
A: This is typically not a bearing issue. Clicking during acceleration is usually caused by a worn CV joint. However, if the hub has excessive play, it can accelerate CV joint wear, making the problem worse.

Q2: Can I reuse the brake dust shield when replacing the hub?
A: Yes, if it is not bent or corroded. A damaged dust shield can rub against the new hub and create a metallic scraping noise that mimics bearing failure.

Q3: How do I verify the hub is seated correctly before installing the axle?
A: After torquing the hub-to-knuckle bolts, rotate the hub by hand. It should spin smoothly with no binding, grinding, or lateral play. Any irregularity means the mounting surface needs to be re-cleaned.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
