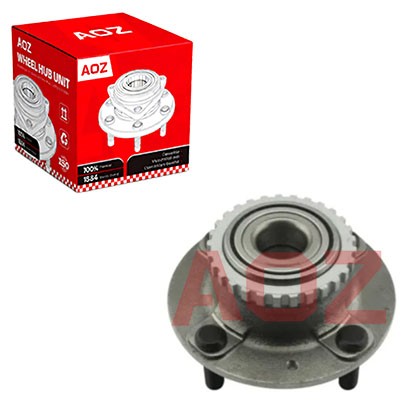

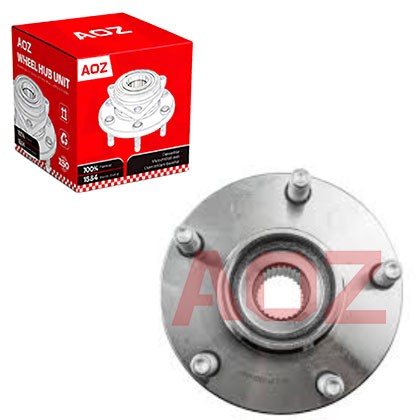

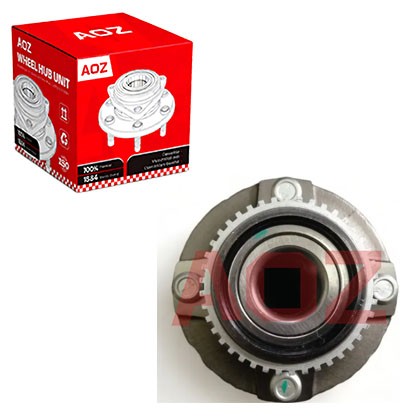

Wheel-hub-bearing-unit-for-HAIMA-HUB053ABS

Fit Vehicles /Application :HAIMA-Premacy ,Family II,Haima 3, Happin

AOZ NO:LD788

OE Numbers:HUB053ABS

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles /Application :HAIMA-Premacy ,Family II,Haima 3, Happin

AOZ NO:LD788

OE Numbers:HUB053ABS

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

HAIMA-HUB053ABS






Fit Vehicles


HAIMA


Premacy

2009-2016

Family II

2006-2010

Haima 3

2007-2013

Happin

2006-2012

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes





ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers














FAQs

Q1: How do I know if the ABS sensor is integrated into the hub or separate?
A: Integrated hubs have a visible magnetic ring on the inner seal and often a wire connector built into the housing. Separate sensors are mounted on the knuckle and point toward a toothed ring on the axle or hub.



Q2: Can a bad hub cause my transmission to shift roughly?
A: Indirectly, yes. If the ABS sensor provides erratic wheel speed data due to a damaged magnetic ring, the transmission control module may receive incorrect speed signals, causing delayed or harsh shifts.



Q3: Is it safe to drive with a hub that has visible grease leaking from the seal?
A: No. A leaking seal means the internal grease is escaping and contaminants are entering. The bearing is already compromised and could fail catastrophically at any moment.

"Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
